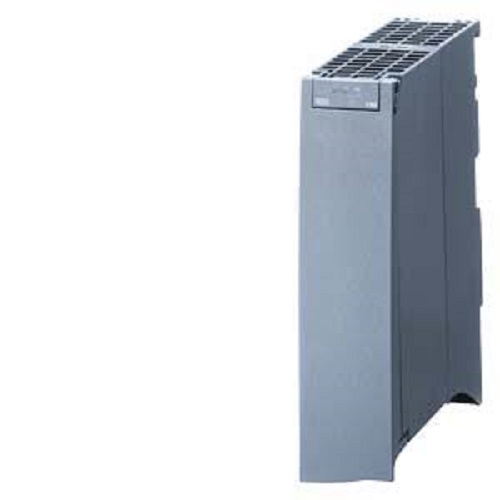

Siemens, SIPLUS S7-1500, 6AG1540-1AD00-7AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS S7-1500, 6AG1540-1AD00-7AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Rated Voltage
15 V DC Volt (V)

Input Current
Typ. 35 mA to 50 mA from the backplane bus interface

Phase
N/A (Direct Current micro-bus tracing alignment)

Humidity
100% Relative Humidity with condensation/frost permissible

Protection Level
IP20

Efficiency
~0.6 W Typical Power Loss / Thermal Dissipation

Mounting Type
S7-1500 DIN Rail Profile Mounting

Operating Temperature
-40 C to +70 C Celsius (oC)

Usage
Industrial Automation

Main Material

Size
3.5 cm Overall Panel Width

Condition
New

Function
CM PtP RS 232 BA (Asynchronous interface with 2 KB telegram buffering)

Height
14.7 Centimeter (cm)

Product Type
SIPLUS Basic (BA) Point-to-Point Communications Module

Application
Point-to-point serial communication bridging in chemically aggressive environments

Dimension (L*W*H)
12.7 cm x 3.5 cm x 14.7 cm Centimeter (cm)

Weight
0.27 Kilograms (kg)

Color
Industrial Gray

Power Mode
Other

Width
3.5 Centimeter (cm)

Length
12.7 Centimeter (cm)

Voltage
15 V DC Volt (v)

Power Consumption
0.65 Watt (W)

Accessories
Integrated 9-pin Sub-D male connector plug interface

Warranty
Standard Siemens Factory Warranty

Siemens, SIPLUS S7-1500, 6AG1540-1AD00-7AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIPLUS S7-1500, 6AG1540-1AD00-7AA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1500 CM PtP RS-232 BA communication module (model number 6AG1540-1AD00-7AA0) establishes point-to-point serial communication links, featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Derived from the standard SIMATIC 6ES7540-1AD00-0AA0 baseline component, it integrates a 9-pin D-sub plug supporting serial protocols such as Freeport (ASCII), 3964(R), and USS at transmission speeds up to 19.2 Kbit/s.

Operating within a single-phase automated system architecture, it draws nominal power directly via the backplane bus system at 24 V DC. This Basic (BA) series interface module is treated with a ruggedized environmental conformal coating to guard circuit pathways against moisture, active contaminants, and aggressive atmospheric condensation across extreme operating climates from -40 to +70 C (with cold startup down to -25 C).
