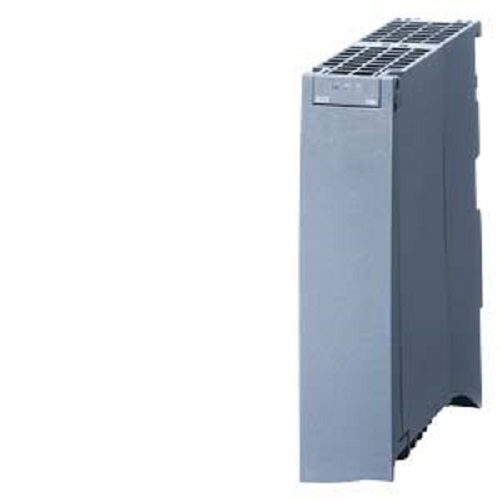

Siemens, SIPLUS S7-1500, 6AG1522-1BH01-7AB0, 16 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SIPLUS S7-1500, 6AG1522-1BH01-7AB0, 16 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

  • Output Voltage
  • 24 V DC Volt (V)
  • Mounting Type
  • S7-1500 DIN Rail Profile Mounting
  • Humidity
  • 100% Relative Humidity with condensation/frost permissible
  • Protection Level
  • IP20
  • Frequency
  • 100 Hertz (HZ)
  • Input Current
  • Max 60 mA from 24V DC
  • Rated Voltage
  • 24 V DC Volt (V)
  • Efficiency
  • ~3.8 W Typical Power Loss
  • Operating Temperature
  • -40 C to +70 C Celsius (oC)
  • Usage
  • Industrial Automation
  • Main Material
  • Condition
  • New
  • Size
  • 3.5 cm Overall Width
  • Function
  • DQ 16x24VDC/0.5A HF (16 Transistor channels isolated in groups of 8)
  • Height
  • 14.7 Centimeter (cm)
  • Product Type
  • SIPLUS High-Feature (HF) Digital Output Extension Module
  • Application
  • High-density modular switching of actuators in aggressive climates
  • Weight
  • 0.23 Kilograms (kg)
  • Dimension (L*W*H)
  • 12.9 cm x 3.5 cm x 14.7 cm Centimeter (cm)
  • Color
  • Industrial Gray
  • Power Mode
  • Other
  • Voltage
  • 24 V DC Volt (v)
  • Length
  • 12.9 Centimeter (cm)
  • Width
  • 3.5 Centimeter (cm)
  • Power Consumption
  • 3.8 Watt (W)
  • Accessories
  • Required 40-pin Front Connector (Ordered Separately)
  • Warranty
  • Standard Siemens Factory Warranty


Siemens, SIPLUS S7-1500, 6AG1522-1BH01-7AB0, 16 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIPLUS S7-1500, 6AG1522-1BH01-7AB0, 16 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1500 DQ 16x24VDC/0.5A HF digital output module (model number 6AG1522-1BH01-7AB0) features 16 digital outputs (DO) driven by solid-state transistors, with 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Running on a single-phase industrial power structure powered by a standard 24 V DC voltage supply, it delivers 0.5 A per channel across two isolated groups of 8 channels (4 A maximum per group). This High Feature (HF) expansion card supports single-channel diagnostic telemetry, substitute value settings, and isochronous mode. It is reinforced with a specialized environmental conformal coating to ensure safe operations under extreme conditions and severe thermal fluctuations from -40 to +70 C.
