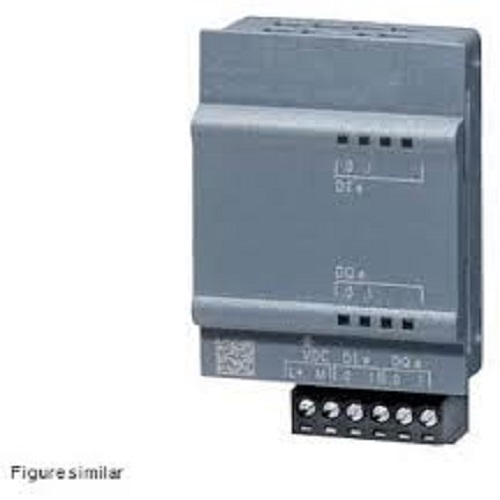

Siemens, SIPLUS S7-1200, 6AG1232-4HA30-4XB0, 1 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS S7-1200, 6AG1232-4HA30-4XB0, 1 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC. Specification

Humidity
100% Relative Humidity with condensation/frost permissible

Input Current
Typ. 15 mA from 5V DC backplane bus

Protection Level
IP20

Mounting Type
Direct plug-in slot on top of CPU front cover

Operating Temperature
-20 C to +60 C Celsius (oC)

Rated Voltage
24 V DC Volt (V)

Output Voltage
10 V Volt (V)

Efficiency
~0.5 W Typical Power Loss

Usage
Industrial Automation

Main Material

Condition
New

Size
3.8 cm Overall Width

Function
SB 1232, 1 Analog Output

Height
6.2 Centimeter (cm)

Product Type
SIPLUS Analog Output Signal Board (SB 1232)

Application
S7-1200 compact CPU expansion for a single analog actuator or drive command under aggressive atmospheres

Weight
0.04 Kilograms (kg)

Dimension (L*W*H)
2.1 cm x 3.8 cm x 6.2 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray

Voltage
24 V DC Volt (v)

Width
3.8 Centimeter (cm)

Length
2.1 Centimeter (cm)

Power Consumption
0.5 Watt (W)

Accessories
Required Removable Terminal Block Connector

Warranty
Standard Siemens Factory Warranty

Siemens, SIPLUS S7-1200, 6AG1232-4HA30-4XB0, 1 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIPLUS S7-1200, 6AG1232-4HA30-4XB0, 1 AO, 0 DO, 0 DI, 0 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1200 SB 1232 analog output signal board (model number 6AG1232-4HA30-4XB0) provides 1 analog output (AO), featuring 0 digital outputs (DO), 0 digital inputs (DI), and 0 analog inputs (AI). Derived from the standard 6ES7232-4HA30-0XB0 baseline component, it drives an individual field actuator using a 12-bit resolution for voltage signals (10 V) or an 11-bit resolution for current loops (020 mA). It operates within a single-phase control arrangement drawing from a standard 24 V DC voltage supply. This compact card plugs straight into the front faceplate slot of the host CPU and is treated with a specialized environmental conformal coating to safeguard electronics from moisture and industrial contaminants across a -20 to +60 C temperature range.
