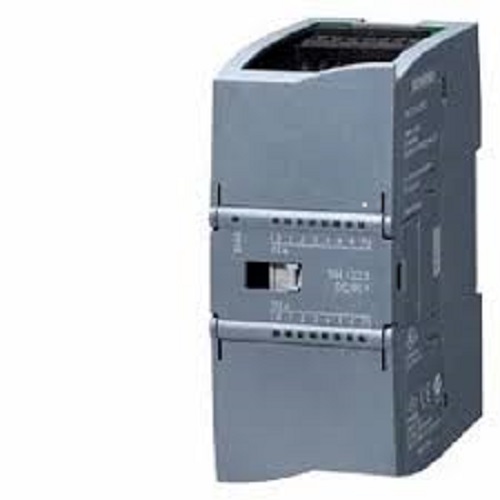

Siemens, SIPLUS S7-1200, 6AG1231-5PD32-4XB0, 0 DO, 0 DI, 0 AO, 4 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS S7-1200, 6AG1231-5PD32-4XB0, 0 DO, 0 DI, 0 AO, 4 AI, Single-phase, 24 V DC. Specification

Mounting Type
35 mm DIN Rail / Wall Mount

Protection Level
IP20

Efficiency
~1.5 W Typical Power Loss

Operating Temperature
-20 C to +60 C Celsius (oC)

Input Current
Typ. 40 mA from 5V DC backplane bus

Frequency
50 Hertz (HZ)

Rated Voltage
24 V DC Volt (V)

Humidity
100% Relative Humidity with condensation/frost permissible

Main Material

Usage
Industrial Automation

Condition
New

Size
4.5 cm Overall Width (S7-1200 single width)

Height
10.0 Centimeter (cm)

Function
SM 1231, 4 Analog Inputs (Resistance Thermometer Module)

Product Type
SIPLUS High-Resolution RTD Analog Input Extension Module

Application
Safe temperature tracking under aggressive environmental atmospheres

Weight
0.22 Kilograms (kg)

Dimension (L*W*H)
7.5 cm x 4.5 cm x 10.0 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray

Width
4.5 Centimeter (cm)

Length
7.5 Centimeter (cm)

Voltage
24 V DC Volt (v)

Power Consumption
1.5 Watt (W)

Accessories
Required Front Connector Terminals

Warranty
Standard Siemens Factory Warranty

Siemens, SIPLUS S7-1200, 6AG1231-5PD32-4XB0, 0 DO, 0 DI, 0 AO, 4 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIPLUS S7-1200, 6AG1231-5PD32-4XB0, 0 DO, 0 DI, 0 AO, 4 AI, Single-phase, 24 V DC.

The Siemens SIPLUS S7-1200 SM 1231 RTD analog input expansion module (model number 6AG1231-5PD32-4XB0) features 4 analog inputs (AI) specialized for resistance temperature detectors (RTD), with 0 digital outputs (DO), 0 digital inputs (DI), and 0 analog outputs (AO). Derived from the standard 6ES7231-5PD32-0XB0 baseline component, it processes thermal diagnostic profiles using a high 15-bit plus sign resolution across Pt100, Pt1000, and Ni1000 sensory tracks. Operating within a single-phase architecture powered by a standard 24 V DC voltage supply, this module is reinforced with a specialized protective conformal coating designed to protect critical circuitry against moisture and corrosive industrial contaminants across a -20 to +60 C temperature range.
