Siemens, SIPLUS extreme, 6AG1136-6DB01-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC

Send Inquiry

Request To Call Back

Siemens, SIPLUS extreme, 6AG1136-6DB01-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS extreme, 6AG1136-6DB01-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC Specification

Usage & Applications
Emergency stop execution, safe actuator firing loops, interlocking safety contactors, and high-reliability safety networks in aggressive chemical atmospheres [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Product Type
Fail-Safe Digital Output Module (SIPLUS ET 200SP F-DQ 4x24VDC/2A PM HF) [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Number of Channels
4 fail-safe digital outputs

Call Control Protocol
PROFIsafe profile functionality [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Frequency (MHz)
30 Hertz (HZ)

Storage Temperature
-40 C to +70 C Celsius (oC)

Network Connection Methods
PROFIsafe communication protocol over standard ET 200SP backplanes [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Power
3.0 Watt (w)

Dimension (L*W*H)
1.5 cm x 5.8 cm x 7.3 cm Centimeter (cm)

Weight
0.057 Kilograms (kg)

Range
Rated current per output channel: 2.0 A max safely limited [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Size
Ultra-compact 15 mm standard building block width profile [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

No. of Ports/Pins
Integrates directly onto a single 16-pin BaseUnit slot alignment [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Material
enclosure

Power Supply
24 V DC nominal tracking voltage supply (Permissible input safety range: 19.2 V to 28.8 V DC) [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Color
Siemens Safety Yellow / Industrial Slate Gray accents (uses a CC01 module color label) [6AG1136-6DB00-2CA0, 6ES7136-6DB01-0CA0]

Height
7.3 Centimeter (cm)

Siemens, SIPLUS extreme, 6AG1136-6DB01-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIPLUS extreme, 6AG1136-6DB01-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC About

This Siemens SIPLUS extreme fail-safe digital output module, model number 6AG1136-6DB01-2CA0, provides a high-feature 4-channel interface (F-DQ 4x24VDC/2A PM HF) utilizing protective P/M-switching transistor technology for critical actuators. Operating efficiently on a 1-phase, 24 V DC supply system, it processes functional safety automation routines rather than driving heavy motor workloads, leaving it without a standard mechanical kW/HP power rating. Based on proven hardware architecture, it features a specialized protective conformal coating to firmly sustain Category 4, PL e, and SIL 3 functional safety compliance across extended ambient temperature environments from -25 C up to +60 C while mounting onto a type A0 BaseUnit.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in I/O MODULE Category

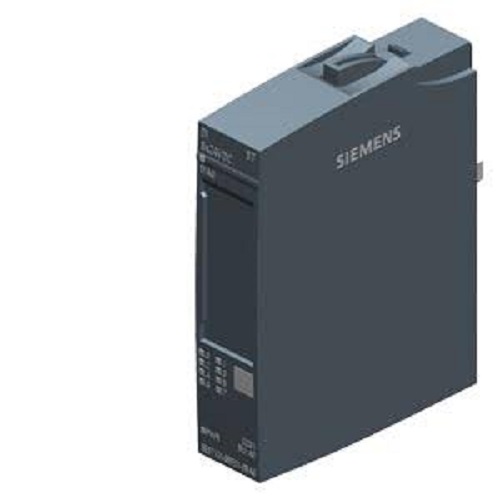

Siemens, SIMATIC ET 200SP, 6ES7132-6GD51-0BA0, N/A (Digital Relay Output Module), 1-Phase, 24 V DC

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage & Applications : Direct electrical terminal interface for driving heterogeneous mixed AC/DC signals up to 24V, handling substitute values upon bus loss, and safety interlock routing [6ES71326GD510BA0]

Material : Industrialgrade ABS / polycarbonate thermoplastic enclosure housing [6ES71326GD510BA0]

Weight : 0.030 Kilograms (kg)

No. of Ports/Pins : Integrates directly onto a single 16pin BaseUnit slot alignment [6ES71326GD510BA0]

Get a Price/Quote

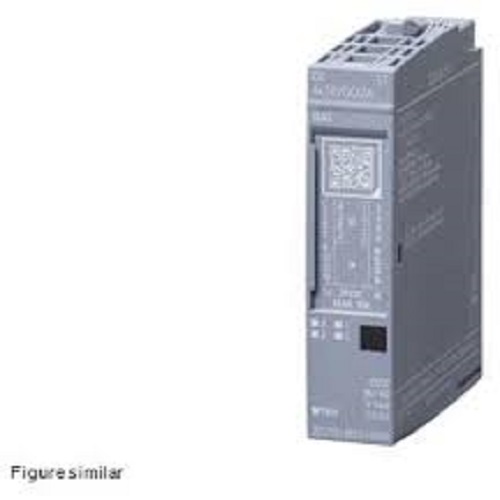

Siemens, SIPLUS extreme, 6AG1132-6BD21-7BA0, N/A (Digital Output Module), 1-Phase, 24 V DC

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage & Applications : Direct electrical terminal interface for driving solenoid valves, hydraulic coils, highpower signaling lamps, and remote signal horns in medially active gas or highcondensation environments

Material : Industrial polycarbonate housing with specialized Class 2 protective conformal coating against chemical/biological agents

Weight : 0.040 Kilograms (kg)

No. of Ports/Pins : Integrates directly onto a single 16pin BaseUnit slot alignment

Get a Price/Quote

Siemens, SIPLUS extreme, 6AG1131-6TF00-7CA0, N/A (Digital Input NAMUR High Feature Module), 1-Phase, 24 V DC

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Usage & Applications : Direct electrical terminal interface for reading intrinsically safe equivalent NAMUR field devices, supporting flutter monitoring, edge evaluation, and pulse stretching

Material : Industrial polycarbonate housing with specialized Class A conformal coating (IPCCC830A compliant)

Weight : 0.032 Kilograms (kg)

No. of Ports/Pins : Integrates directly onto a single 16pin BaseUnit slot

Get a Price/Quote

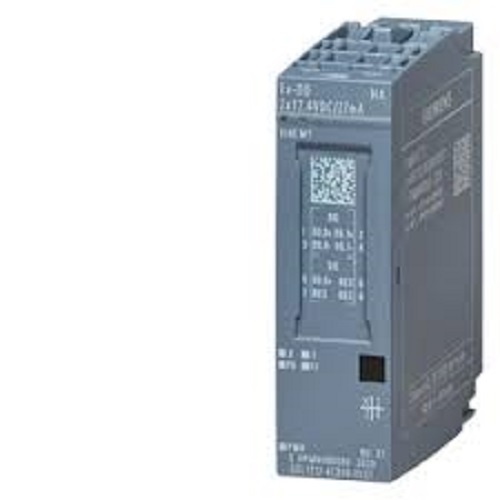

Siemens, SIMATIC ET 200SP HA / ET 200SP, 6DL1132-6CB00-0HX1, N/A (Intrinsically Safe Digital Ex-i Output Module), 1-Phase, 24 V DC (System) / 17.4 V DC (Output)
