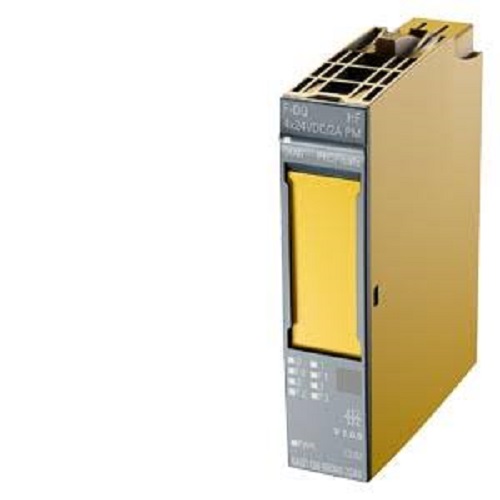

Siemens, SIPLUS extreme, 6AG1136-6DB00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS extreme, 6AG1136-6DB00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC Specification

Usage & Applications
Emergency stop execution, safe actuator firing loops, interlocking safety contactors, and high-reliability safety networks in aggressive/corrosive chemical conditions

Product Type
Fail-Safe Digital Output Module (SIPLUS ET 200SP F-DQ 4x24VDC/2A PM HF)

Number of Channels
4 fail-safe digital outputs

Call Control Protocol
PROFIsafe profile functionality

Frequency (MHz)
30 Hertz (HZ)

Storage Temperature
-40 C to +70 C Celsius (oC)

Network Connection Methods
PROFIsafe safety communication profile over standard ET 200SP backplane setups

Power
4.0 Watt (w)

Dimension (L*W*H)
1.5 cm x 5.8 cm x 7.3 cm Centimeter (cm)

Weight
0.057 Kilograms (kg)

Size
Ultra-compact 15 mm standard building block width profile

No. of Ports/Pins
Integrates directly onto a single 16-pin BaseUnit slot alignment

Range
Rated current per output channel: 2.0 A max safely limited

Material
Industrial-grade polycarbonate functional safety enclosure housing with Class A conformal coating

Usage
Industrial

Power Supply
24 V DC nominal tracking voltage supply (Permissible input safety range: 19.2 V to 28.8 V DC)

Color
Siemens Safety Yellow / Industrial Slate Gray accents (uses a CC01 module color label)

Height
7.3 Centimeter (cm)

Siemens, SIPLUS extreme, 6AG1136-6DB00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIPLUS extreme, 6AG1136-6DB00-2CA0, N/A (Fail-Safe Digital Output Module), 1-Phase, 24 V DC About

This Siemens SIPLUS extreme fail-safe digital output module, model number 6AG1136-6DB00-2CA0, provides a high-feature 4-channel interface (F-DQ 4x24VDC/2A PM HF) utilizing safe P/M-switching transistor technology. Operating smoothly on a 1-phase, 24 V DC supply system, it processes safety logic automation routines rather than acting as a motor drive, meaning it does not feature a standard mechanical kW/HP power rating. Built on the core 6ES7136-6DB00-0CA0 architecture, it integrates a specialized protective conformal coating to firmly achieve SIL 3 and PL e safety classifications under extreme environments between -30 C and +60 C.
