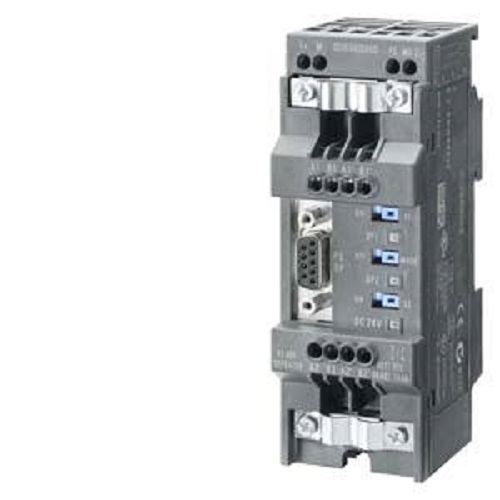

Siemens, SIPLUS DP, 6AG1972-0AA02-7XA0, RS-485 Repeater (Up to 12 Mbps / Max 31 Nodes), Single-phase, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIPLUS DP, 6AG1972-0AA02-7XA0, RS-485 Repeater (Up to 12 Mbps / Max 31 Nodes), Single-phase, 24 V DC Specification

Drive Type
Line isolation switching driver system

Application
Connection & range extension of PROFIBUS/MPI systems

Control Type
Active RS485 Signal Conditioning & Decoupling

Sensor Type
Distributed fieldbus network node line link

Processor Type
Integrated Signal Regeneration Processor Core

Weight
0.25 Kilograms (kg)

Phase
Not Applicable (DC Pure Power Architecture)

Mounting Type
Snap-on installation to 35 mm DIN Top-Hat rail

Speed Range
Transmission rate: 9.6 kbit/s to 12 Mbit/s

Automation Grade
SIPLUS Extreme (Harsh Environment Industrial)

Connectivity Type
RS 485 Sub-D Interface / Terminal Block Segments

IP Rating
IP20 Protection Index Classification

Features
Conformal coating protection, built-in PG/OP socket

Remote Control
Yes

Warranty
Standard Siemens Manufacturer Warranty

Usage
Corrosive gas / severe environment signal extension

Material
Thermoplastic / Conformal coated circuitry

Size
Compact single-tier communication housing

Power
24 Volt (v)

Temperature
-40 C to 70 C Celsius (oC)

Height
13.50 Centimeter (cm)

Product Type
SIPLUS DP Active RS485 Network Line Repeater

Voltage
28.8 Volt (v)

Color
Industrial Siemens Standard Slate Grey

Width
7.50 Centimeter (cm)

Length
6.60 Centimeter (cm)

Siemens, SIPLUS DP, 6AG1972-0AA02-7XA0, RS-485 Repeater (Up to 12 Mbps / Max 31 Nodes), Single-phase, 24 V DC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIPLUS DP, 6AG1972-0AA02-7XA0, RS-485 Repeater (Up to 12 Mbps / Max 31 Nodes), Single-phase, 24 V DC About

The Siemens SIPLUS DP ruggedized RS-485 repeater (model number 6AG1972-0AA02-7XA0) is an industrial network signal amplifier engineered based on the 6ES7972-0AA02-0XA0 architecture for harsh environmental conditions. Running on a single-phase direct current operational voltage rating of 24 V DC, it features a specialized conformal coating and an extended operating temperature range of -25 to +70 C. It serves to regenerate communication data across PROFIBUS and MPI bus systems to smoothly manage localized automation architectures supporting up to 31 nodes per segment at transmission speeds reaching up to 12 Mbps.
