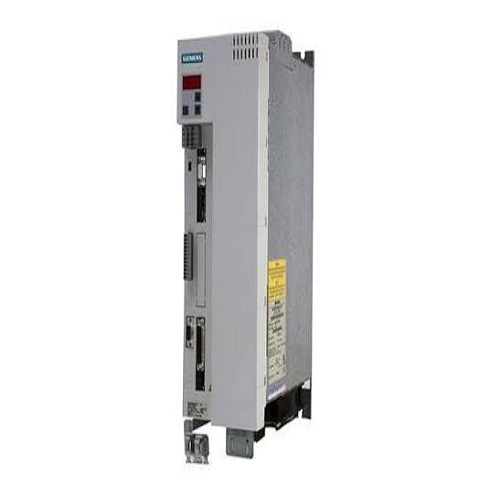

Siemens SIMOVERT MASTERDRIVES Motion Control Inverter (6SE7021-3TP50-Z), 3-Phase output, 13.2 A nominal current, Compact Plus Unit, IP20 panel-mount heavy-duty motion controller

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMOVERT MASTERDRIVES Motion Control Inverter (6SE7021-3TP50-Z), 3-Phase output, 13.2 A nominal current, Compact Plus Unit, IP20 panel-mount heavy-duty motion controller Specification

Surface Finish
Textured Industrial Powder-Coat / Matte Finish

Power Factor
0.95 Drive Power Factor Profile

Mounting Type
Vertical Wall / Back-Panel Mount inside Cubicle Enclosure

Operating Temperature
-10 C to +50 C Celsius (oC)

Insulation Material
Specialized Polycarbonate High-Grade Separation Panels

IP Rating
IP20

Shape
Slim Vertical Booksize Form Factor (Compact Plus Unit)

Humidity %
Max 95% Relative Humidity (non-condensing air)

Efficiency
High-Efficiency Power Transformation Rating

Connector Type
Multi-Slot Communication Cage & Plug Terminal Blocks

Feature
High performance multi-slot card capacity & dynamic overload profile

Product Type
Motion Control Servo Inverter Drive Module

Power Rating
5.5 kW Inverter Power Class

Application
High-precision dynamic servo axis and industrial positioning loops

Frequency (MHz)
N/A Hertz (HZ)

Energy Consumption
5.50 Kilowatt-hour ( KWH)

Output Type
Variable Frequency/Voltage 3-Phase AC Output

Color
Industrial Metal Silver / Siemens Dark Grey Base

Dimension (L*W*H)
53.0 cm x 38.0 cm x 25.0 cm Centimeter (cm)

Usage & Applications
CNC axes, automation packaging, high-speed material handling, printing

Rated Voltage
510 Volt (V)

Weight
9.07 Kilograms (kg)

Warranty
Standard 12-Month Manufacturer Warranty

Cable Type
Double-Shielded Low-Capacitance Servo Motor Cables

Input Voltage
510 Volt (V)

Size
13.5 cm x 36.0 cm x 26.0 cm

Phase
DC Link (Input) / 3-Phase AC (Output)

Frequency
0 Hz to 400 Hertz (HZ)

Features
C23 Resolver Interface, G11/G91 PROFIBUS, & K80 Safe Stop

Rated Current
13.20 A Ampere (amp)

Material
Industrial Grade Heavy-Duty Sheet Metal & Polycarbonate

No Of Poles
N/A (3-Phase Motor Control Side Output)

Conductor
High-Grade Internal Copper Bus Tracks

Connection Type
Pluggable Screw Signal Blocks & Heavy DC Bus Bars

Siemens SIMOVERT MASTERDRIVES Motion Control Inverter (6SE7021-3TP50-Z), 3-Phase output, 13.2 A nominal current, Compact Plus Unit, IP20 panel-mount heavy-duty motion controller Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMOVERT MASTERDRIVES Motion Control Inverter (6SE7021-3TP50-Z), 3-Phase output, 13.2 A nominal current, Compact Plus Unit, IP20 panel-mount heavy-duty motion controller

Execute high-dynamic multi-axis servo positioning loops with the high-reliability Siemens SIMOVERT MASTERDRIVES Motion Control Inverter (6SE7021-3TP50-Z). Specifically engineered by Siemens as a high-performance Compact Plus Unit for synchronized automation systems, this dedicated DC/AC inverter optimizes AC servo motor performance through rapid speed, torque, and position regulation. Rather than connecting directly to an AC grid line, this drive hooks into a common DC link distribution system, accepting an incoming 510V to 650V DC bus voltage and delivering a steady 13.2 Amp nominal output current to achieve a robust 5.5 kW (7.5 HP) power rating.

The core electrical and physical framework is built into a space-efficient, book-size IP20 enclosure measuring 13.5 x 36.0 x 26.0 cm, designed for tight, side-by-side electrical cabinet installations. Optimized for heavy continuous manufacturing, its advanced software architecture excels in high-response configurations such as packaging lines, robotic cells, and material handling systems. The "-Z" suffix denotes a customized factory hardware layout preconfigured with critical option modules, typically adding specialized communication, functional feedback loops, or protective safety bits right out of the box. [

Important Lifecycle & Maintenance Status: The entire legacy SIMOVERT MASTERDRIVES platform is officially discontinued and no longer in active production. Siemens has fully replaced this legacy line with the current SINAMICS S120 multi-axis drive platform for brand-new systems. However, factory-boxed surplus and certified refurbished units remain widely traded as direct drop-in spare parts to maintain existing manufacturing plant lifecycles.
