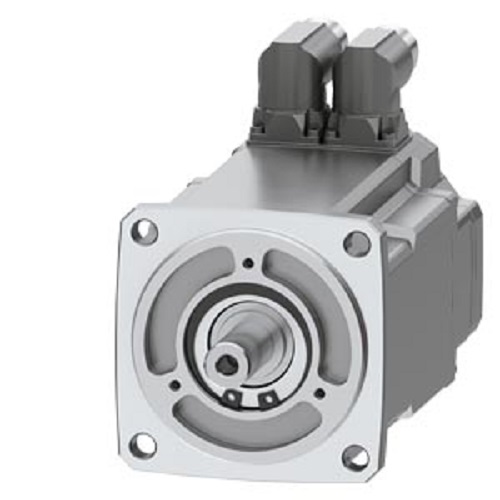

Siemens SIMOTICS S-1FT7 Synchronous Servo Motor
Siemens SIMOTICS S-1FT7 Synchronous Servo Motor
images Send Inquiry
Request To Call Back

Siemens SIMOTICS S-1FT7 Synchronous Servo Motor

Price 30000.0 INR/

Get a Price/Quote
MOQ : 1 Piece

Siemens SIMOTICS S-1FT7 Synchronous Servo Motor Specification

  • Torque
  • 65.0 N-m
  • Sealed Type
  • Mechanical Seal
  • Horse Power
  • 20.25 HP
  • Features
  • Absolute encoder single-turn 24-bit with DRIVE-CLiQ interface (Encoder AS24DQI) / Built-in Pt1000 thermal protection sensor tracking / Rotatable power and signal connectors / Standard vibration severity grade A
  • Cooling Method
  • Forced ventilation via a top-mounted active external cooling fan block module
  • Poles Number
  • 10
  • Voltage
  • 380 V to 480 V Volt (v)
  • Bearing Type
  • High-precision grease-lubricated radial deep-groove ball bearings rated for heavy dynamic indexing
  • Power Rating
  • 15.10 kW Continuous (Forced-ventilated high-output class)
  • Rated Voltage
  • 380 V to 480 V Volt (V)
  • Starting Type
  • Electronic closed-loop inverter servo drive starter
  • Current Type
  • AC (Permanent-Magnet Synchronous Servomotor architecture)
  • Product Type
  • Synchronous Motor
  • Output Power
  • 15,100 W Watt (w)
  • Protect Feature
  • Other
  • Efficacy
  • Other
  • Speed
  • 6000 r/min RPM
  • Power
  • 15,100 W Watt (w)
  • Usage & Applications
  • Highly dynamic industrial automation, precision CNC machine tool feed axes, high-speed robotic positioning, and high-duty automated machinery lines
  • Weight
  • 54.5 kg Kilograms (kg)
  • Display Type
  • Highly dynamic industrial automation, precision CNC machine tool feed axes, high-speed robotic positioning, and high-duty automated machinery lines
  • Warranty
  • 12 Months Factory Warranty (Standard Siemens OEM industrial coverage from date of delivery)
  • Phase
  • Three Phase
  • Rated Current
  • 35.0 A Ampere (amp)
  • Conductor
  • High-grade internal multi-strand copper winding matrix layout
  • Mounting Type
  • Frame size IM B5 / IM V1 / IM V3 conventional machine flange installation profile


Siemens SIMOTICS S-1FT7 Synchronous Servo Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


Siemens SIMOTICS S-1FT7 Synchronous Servo Motor About

The Siemens 1FT7105-5SF71-6CD3 is a SIMOTICS S-1FT7 synchronous servo motor designed for high-performance motion control, CNC machine tools, robotics, and demanding industrial automation applications. It uses permanent-magnet synchronous motor technology for precise speed, torque, and position control and is designed for integration with Siemens SINAMICS drive systems. The 1FT7105 frame size provides a robust servo solution with high power density, rapid dynamic response, and reliable continuous-duty performance. The -5SF71 configuration identifies the motor's electrical, mechanical, and cooling arrangement, while -6CD3 specifies the particular feedback, shaft, brake, and connection configuration. The motor is suitable for CNC axes, machine tools, robotics, handling equipment, production automation, packaging machinery, and precision positioning systems requiring accurate and repeatable motion. Its permanent-magnet construction supports efficient servo operation and excellent dynamic response. For the exact 1FT7105-5SF71-6CD3 MLFB, the rated power, rated torque, rated speed, encoder type, holding-brake specification, protection rating, dimensions, and weight should be verified from the Siemens-specific datasheet rather than inferred from another 1FT7105 variant.
