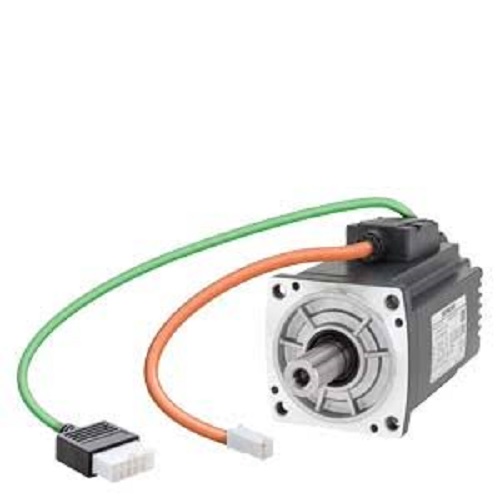

Siemens SIMOTICS S-1FL6 Low Inertia Servo Motor (1FL6042-2AF21-1AA1), 2.39 Nm nominal torque, 3-phase 230V AC input, built-in TTL 2500 ppr incremental encoder, IP65 protection, designed for SINAMICS V90 servo drives

Price 15000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens SIMOTICS S-1FL6 Low Inertia Servo Motor (1FL6042-2AF21-1AA1), 2.39 Nm nominal torque, 3-phase 230V AC input, built-in TTL 2500 ppr incremental encoder, IP65 protection, designed for SINAMICS V90 servo drives Specification

  • Rated Voltage
  • 230 V AC Volt (V)
  • Cooling Method
  • Natural Cooling (Surface Dissipation)
  • Current Type
  • AC (Alternating Current)
  • Poles Number
  • 10
  • Efficacy
  • High Efficiency Performance
  • Torque
  • 2.39 N-m
  • Standard
  • CE / EAC / RoHS Compliant
  • Bearing Type
  • Pre-lubricated Deep Groove Ball Bearings
  • Power Rating
  • 0.75 kW
  • Features
  • Converter Startup (V90 Controlled)
  • Rated Frequency
  • 50 Hertz (HZ)
  • Noise Level
  • Vibration Severity Grade A db
  • Ambient Temperature
  • 0 C to +40 C Celsius (oC)
  • Horse Power
  • 1.02 hp
  • Voltage
  • 230 Volt (v)
  • Starting Type
  • Converter Startup (V90 Controlled)
  • Product Type
  • Other
  • Output Power
  • 0.75 kW kilovolt (kV)
  • Protect Feature
  • Other
  • Speed
  • 3,000 RPM
  • Power
  • 750 Watt (w)
  • Usage & Applications
  • Highly Dynamic Industrial Automation / CNC
  • Color
  • Standard Siemens Anthracite Gray
  • Cable Type
  • Cable Outlet Connection
  • Operating Temperature
  • 0 C to +40 C Celsius (oC)
  • Weight
  • 3.30 Kilograms (kg)
  • Warranty
  • Standard Manufacturer Warranty
  • Phase
  • 3-Phase
  • Material
  • Aluminum / Metal Alloy Frame housing
  • Rated Current
  • 4.7 Ampere (amp)
  • Conductor
  • Copper Windings
  • Frequency
  • 50 Hertz (HZ)
  • Shaft Diameter
  • 14 Millimeter (mm)
  • Mounting Type
  • Flange Mount (IM B5 / IM V1 / IM V3)


Siemens SIMOTICS S-1FL6 Low Inertia Servo Motor (1FL6042-2AF21-1AA1), 2.39 Nm nominal torque, 3-phase 230V AC input, built-in TTL 2500 ppr incremental encoder, IP65 protection, designed for SINAMICS V90 servo drives Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens SIMOTICS S-1FL6 Low Inertia Servo Motor (1FL6042-2AF21-1AA1), 2.39 Nm nominal torque, 3-phase 230V AC input, built-in TTL 2500 ppr incremental encoder, IP65 protection, designed for SINAMICS V90 servo drives

Execute high-dynamic positioning loops with the Siemens SIMOTICS S-1FL6 Low Inertia Servo Motor. Purpose-built for SINAMICS V90 servo converters, this synchronous motor features a 40 mm shaft height optimized for rapid acceleration in packaging and material handling. Running on 3-phase 230V AC, it delivers 0.75 kW power, 3000 RPM nominal speed (5000 RPM max), and 2.39 Nm torque.
An integrated TTL incremental encoder (2500 ppr) eliminates tracking drift. A feather key shaft extension ensures zero-slip mechanical force distribution. Built with a robust IP65 rating and a shaft sealing ring, it completely blocks airborne dust and liquid splashes. Note that this specific model does not contain an internal holding brake, making it ideal for horizontal axes.
