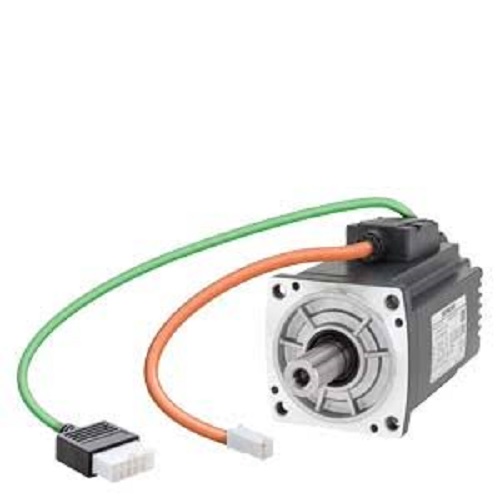

Siemens, SIMOTICS S-1FL6, 1FL6042-2AF21-1LB1, 0.75 kW / 1.02 HP, 3-Phase, 230V.
Siemens, SIMOTICS S-1FL6, 1FL6042-2AF21-1LB1, 0.75 kW / 1.02 HP, 3-Phase, 230V.

Siemens, SIMOTICS S-1FL6, 1FL6042-2AF21-1LB1, 0.75 kW / 1.02 HP, 3-Phase, 230V.

Price 15000.0 INR/ Piece

MOQ : 1 Piece

Siemens, SIMOTICS S-1FL6, 1FL6042-2AF21-1LB1, 0.75 kW / 1.02 HP, 3-Phase, 230V. Specification

  • Noise Level
  • Vibration Severity Grade A db
  • Current Type
  • AC (Alternating Current)
  • Poles Number
  • 10
  • Rated Voltage
  • 230 V AC Volt (V)
  • Features
  • With Absolute Encoder 20-bit + 12-bit Multi-turn
  • Cooling Method
  • Natural Cooling (Self-Cooled)
  • Rated Frequency
  • 60 Hertz (HZ)
  • Starting Type
  • Converter Startup (V90 Controlled)
  • Power Rating
  • 0.75 kW
  • Efficacy
  • High Efficiency Synchronous Performance
  • Horse Power
  • 1.02 hp
  • Standard
  • CE / EAC Compliant
  • Bearing Type
  • Pre-lubricated Deep Groove Ball Bearings
  • Voltage
  • 230 Volt (v)
  • Ambient Temperature
  • 0 C to +40 C Celsius (oC)
  • Torque
  • 2.39 N-m
  • Product Type
  • Other
  • Output Power
  • 0.75 kW (1.02 hp) kilovolt (kV)
  • Protect Feature
  • Other
  • Speed
  • 5,000 RPM
  • Power
  • 750 Watt (w)
  • Usage & Applications
  • Dynamic Motion Systems & CNC Automation
  • Color
  • Black Finish
  • Cable Type
  • Cable Outlet Connection
  • Operating Temperature
  • 0 C to +40 C Celsius (oC)
  • Weight
  • 3.70 Kilograms (kg)
  • Display Type
  • None (Blind Motor Design)
  • Phase
  • 3-Phase
  • Warranty
  • Standard Manufacturer Warranty
  • Conductor
  • Copper Windings
  • Frequency
  • 50 Hertz (HZ)
  • Rated Current
  • 4.7 Ampere (amp)
  • Material
  • Aluminum / Metal Alloy Housing
  • Shaft Diameter
  • 14 Millimeter (mm)
  • Mounting Type
  • Flange Mount (IM B5 / V1 / V3)


Siemens, SIMOTICS S-1FL6, 1FL6042-2AF21-1LB1, 0.75 kW / 1.02 HP, 3-Phase, 230V. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIMOTICS S-1FL6, 1FL6042-2AF21-1LB1, 0.75 kW / 1.02 HP, 3-Phase, 230V.

The Siemens SIMOTICS S-1FL6 low-inertia permanent-magnet synchronous servomotor, model 1FL6042-2AF21-1LB1, delivers highly dynamic motion performance for commercial machinery. It provides a reliable rated power output of 0.75 kW / 1.02 HP while operating smoothly across a 230V 3-phase AC voltage grid. Designed for direct integration with SINAMICS V90 converter systems, this unit features a 40 mm shaft height with a feather key, a 20-bit absolute multi-turn encoder, an integrated holding brake, and a rugged IP65 protection rating complete with an outer sealing ring.
