Siemens SIMOTICS S-1FK2 CT Servo Motor
Siemens SIMOTICS S-1FK2 CT Servo Motor
images Send Inquiry
Request To Call Back

Siemens SIMOTICS S-1FK2 CT Servo Motor

Price 30000.0 INR/ piece

Get a Price/Quote
MOQ : 1 Piece

Siemens SIMOTICS S-1FK2 CT Servo Motor Specification

  • Bearing Type
  • Ball Bearing
  • Cooling Method
  • Natural Cooling
  • Current Type
  • AC
  • Torque
  • 0.90 N-m
  • Power Rating
  • 570 W
  • Voltage
  • 380 480 Volt (v)
  • Features
  • Compact Servo Control
  • Horse Power
  • 0.76 HP
  • Rated Frequency
  • 50 60 Hertz (HZ)
  • Rated Voltage
  • 380 480 Volt (V)
  • Output Power
  • 570 Watt (w)
  • Frequency (MHz)
  • 50 60 Hertz (HZ)
  • Speed
  • 6000 RPM
  • Starting Type
  • Electric Start
  • Power
  • 570 Watt (w)
  • Usage & Applications
  • Industrial Automation Systems
  • Color
  • Anthracite
  • Cable Type
  • OCC Servo Cable
  • Dimension (L*W*H)
  • 12.6 8.0 8.0 Centimeter (cm)
  • Weight
  • 2.90 Kilograms (kg)
  • Phase
  • 3
  • Conductor
  • Copper
  • Material
  • Metal
  • Frequency
  • 50 60 Hertz (HZ)
  • Rated Current
  • 2.0 Ampere (amp)
  • Shaft Diameter
  • 1.9 Centimeter (cm)
  • Mounting Type
  • IM B5 Flange Mount


Siemens SIMOTICS S-1FK2 CT Servo Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


Siemens SIMOTICS S-1FK2 CT Servo Motor About

The Siemens SIMOTICS S-1FK2 CT 1FK2204-5AK01-0SA0 is a compact permanent-magnet synchronous servo motor designed for SINAMICS S210 motion-control applications. It has a 0.57 kW rated power at 6,000 RPM for 380480 V operation and 0.75 kW at 3,000 RPM for 200240 V operation. The motor provides 0.90 Nm rated torque, 2.40 Nm static torque, and 7.10 Nm maximum torque, with a maximum speed of 8,000 RPM. It uses natural cooling and has IP65 protection. The motor has a D19 40 mm cylindrical/plain shaft, an AS22DQC absolute single-turn 22-bit encoder, and an OCC (One Cable Connection) M17 interface. Siemens specifies a 2.9 kg net weight and 126 mm overall length.
Siemens SIMOTICS S-1FK2 CT Servo Motor
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Servo Motor Category

SIMOTICS S AC Servo Motor, 0.75kW, 1HP, 3000rpm, 2.6kg, 12.5x7x8.1cm

SIMOTICS S AC Servo Motor, 0.75kW, 1HP, 3000rpm, 2.6kg, 12.5x7x8.1cm

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Weight : 2.50 Kilograms (kg)

Conductor : Hybrid PowerSignal Architecture

Power : 0.75 kilovolt (kV)

Cooling Method : Natural Surface Cooling (IC410)

Get a Price/Quote
Siemens, SIMOTICS S-1FK2 1FK2203-4AK11-1MB0, 0.43 kW / 0.375 kW, 3-Phase, 380-480 V / 200-240 V

Siemens, SIMOTICS S-1FK2 1FK2203-4AK11-1MB0, 0.43 kW / 0.375 kW, 3-Phase, 380-480 V / 200-240 V

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Weight : 1.97 Kilograms (kg)

Conductor : Highconductivity copper windings

Power : 430 W Watt (w)

Cooling Method : Natural cooling (surface ventilation)

Get a Price/Quote

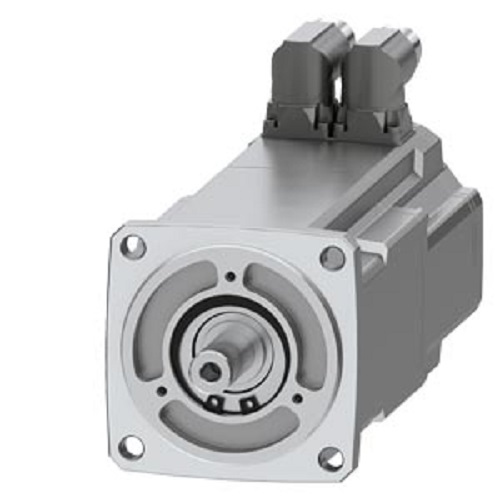

Siemens, SIMOTICS S-1FK2 1FK2204-5AF10-2MB0, 0.75 kW / 0.375 kW, 3-Phase, 380-480 V / 200-240 V
