Siemens SIMOTICS S-1FK2 CT Servo Motor

Siemens SIMOTICS S-1FK2 CT Servo Motor About

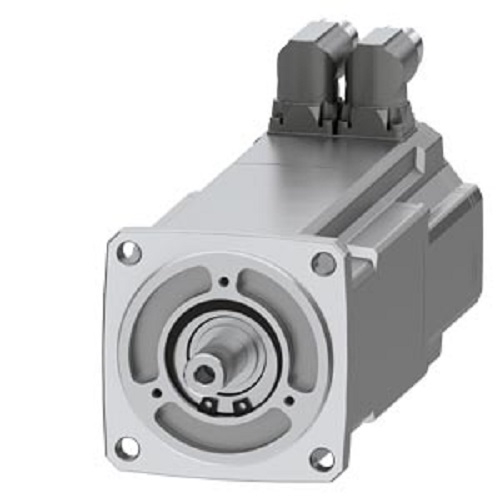

The Siemens SIMOTICS S-1FK2 CT 1FK2206-4AF11-0MB0 is a permanent-magnet synchronous servo motor designed for high-performance industrial motion control with SINAMICS S120. It provides 2,850 W rated power at 3,000 RPM on a 380480 V supply. The motor delivers 9.1 Nm rated torque, 12 Nm stall torque, and 36 Nm maximum torque, with a maximum speed of 5,800 RPM. This configuration features IP65 protection, natural cooling, and a D24 50 mm cylindrical shaft. It is equipped with an AM22DQC absolute multiturn encoder with 22-bit single-turn + 12-bit multiturn resolution, M17 DRIVE-CLiQ interface, and M23 power connector. The configuration includes a holding brake and has a net weight of approximately 10.6 kg.
