Siemens SIMOTICS S-1FK2 CT Servo Motor
Siemens SIMOTICS S-1FK2 CT Servo Motor
images Send Inquiry
Request To Call Back

Siemens SIMOTICS S-1FK2 CT Servo Motor

Price 30000.0 INR/ piece

Get a Price/Quote
MOQ : 1 Piece

Siemens SIMOTICS S-1FK2 CT Servo Motor Specification

  • Current Type
  • AC
  • Horse Power
  • 3.82 HP
  • Rated Voltage
  • 380 480 Volt (V)
  • Bearing Type
  • Ball Bearing
  • Rated Frequency
  • 50 60 Hertz (HZ)
  • Voltage
  • 380 480 Volt (v)
  • Torque
  • 9.10 N-m
  • Cooling Method
  • Natural Cooling
  • Features
  • Precision Servo Control
  • Power Rating
  • 2850 W
  • Output Power
  • 2850 Watt (w)
  • Frequency (MHz)
  • 50 60 Hertz (HZ)
  • Speed
  • 3000 RPM
  • Starting Type
  • Electric Start
  • Power
  • 2850 Watt (w)
  • Color
  • Anthracite
  • Usage & Applications
  • Industrial Automation Systems
  • Dimension (L*W*H)
  • 24.4 12.5 12.5 Centimeter (cm)
  • Cable Type
  • Servo Cable
  • Weight
  • 10.60 Kilograms (kg)
  • Phase
  • 3
  • Conductor
  • Copper
  • Material
  • Metal
  • Rated Current
  • 6.2 Ampere (amp)
  • Frequency
  • 50 60 Hertz (HZ)
  • Shaft Diameter
  • 2.4 Centimeter (cm)
  • Mounting Type
  • IM B5 Flange Mount


Siemens SIMOTICS S-1FK2 CT Servo Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


Siemens SIMOTICS S-1FK2 CT Servo Motor About

The Siemens SIMOTICS S-1FK2 CT 1FK2206-4AF10-1SB0 is a permanent-magnet synchronous servo motor designed for precision industrial motion control with SINAMICS S120. It delivers 2,850 W rated power at 3,000 RPM on 380480 V and 1,720 W at 1,500 RPM on 200240 V. The motor provides 9.1 Nm rated torque, 12 Nm stall torque, and 36 Nm maximum torque, with a maximum permissible speed of 5,800 RPM. This configuration includes a holding brake, IP64 protection, and a D24 50 mm shaft with feather key. It uses an AS22DQC absolute single-turn 22-bit encoder, M17 DRIVE-CLiQ connection, and M23 power connector. Siemens lists the net weight as 10.6 kg.
Siemens SIMOTICS S-1FK2 CT Servo Motor
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Servo Motor Category

SIMOTICS S-1FL2 Low Inertia Servo motor: 1.00 kW, 1.34 HP, 3000 RPM, 2.40 kg, 8.1x8.1x14.6 cm.

SIMOTICS S-1FL2 Low Inertia Servo motor: 1.00 kW, 1.34 HP, 3000 RPM, 2.40 kg, 8.1x8.1x14.6 cm.

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Torque : 3.20 Nm

Weight : 2.40 Kilograms (kg)

Speed : 3000 RPM

Voltage : 380 V 480 V Volt (v)

Get a Price/Quote
Siemens, SIMOTICS S-1FK2 1FK2204-5AF10-2SB0, 0.75 kW / 0.375 kW, 3-Phase, 380-480 V / 200-240 V

Siemens, SIMOTICS S-1FK2 1FK2204-5AF10-2SB0, 0.75 kW / 0.375 kW, 3-Phase, 380-480 V / 200-240 V

Price 2000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Torque : Static/Stall Torque (M ): 3.20 NmRated Torque: 3.00 Nm Nm

Weight : 3.85 Kilograms (kg)

Speed : Rated: 3000 rpm RPM

Voltage : 200 V ... 480 V AC drive grid spectrum Volt (v)

Get a Price/Quote

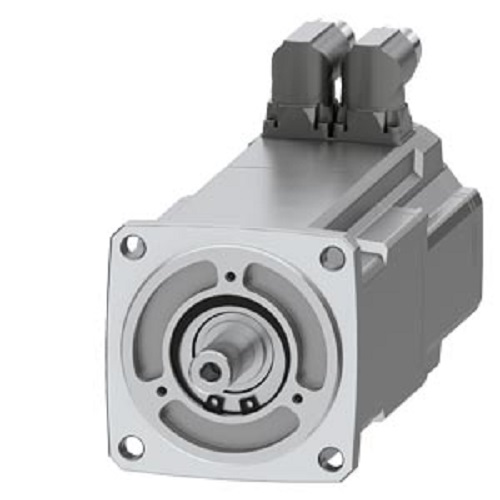

Siemens, SIMOTICS S-1FK2 1FK2104-5AF10-2SB0, 0.75 kW / 0.375 kW, 3-Phase, 380-480 V / 200-240 V
