Siemens SIMOTICS S-1FK2 CT Servo Motor

Price 30000.0 INR/ piece

Get a Price/Quote
MOQ : 1 Piece

Siemens SIMOTICS S-1FK2 CT Servo Motor Specification

  • Voltage
  • 380 480 Volt (v)
  • Rated Voltage
  • 380 480 Volt (V)
  • Current Type
  • AC
  • Cooling Method
  • Natural Cooling
  • Power Rating
  • 2850 W
  • Torque
  • 9.10 N-m
  • Features
  • Precision Servo Control
  • Rated Frequency
  • 50 60 Hertz (HZ)
  • Bearing Type
  • Ball Bearing
  • Horse Power
  • 3.82 HP
  • Output Power
  • 2850 Watt (w)
  • Frequency (MHz)
  • 50 60 Hertz (HZ)
  • Speed
  • 3000 RPM
  • Starting Type
  • Electric Start
  • Power
  • 2850 Watt (w)
  • Color
  • Anthracite
  • Usage & Applications
  • Industrial Automation Systems
  • Cable Type
  • Servo Cable
  • Dimension (L*W*H)
  • 19.3 12.5 12.5 Centimeter (cm)
  • Weight
  • 8.90 Kilograms (kg)
  • Phase
  • 3
  • Conductor
  • Copper
  • Material
  • Metal
  • Rated Current
  • 6.2 Ampere (amp)
  • Frequency
  • 50 60 Hertz (HZ)
  • Shaft Diameter
  • 2.4 Centimeter (cm)
  • Mounting Type
  • IM B5 Flange Mount


Siemens SIMOTICS S-1FK2 CT Servo Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


Siemens SIMOTICS S-1FK2 CT Servo Motor About

The Siemens SIMOTICS S-1FK2 CT 1FK2206-4AF01-1MB0 is a three-phase permanent-magnet synchronous servo motor designed for precision motion control with SINAMICS S120. It provides 2,850 W rated power at 3,000 RPM for 380480 V operation and 1,720 W at 1,500 RPM for 200240 V operation. The motor has 12 Nm stall torque, 36 Nm maximum torque, and a 9.1 Nm rated torque at 3,000 RPM. This configuration features IP65 protection, a D24 50 mm shaft with feather key, and an AM22DQC absolute multiturn encoder with 22-bit single-turn + 12-bit multiturn resolution. It uses an M17 DRIVE-CLiQ plug and M23 power connector. Siemens lists the net weight as 8.9 kg.
Siemens SIMOTICS S-1FK2 CT Servo Motor
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Servo Motor Category

SIMOTICS S-1FL2 AC Servo Motor, 2kW, 2.68HP, 2000rpm, 13.7kg, 24.72x13x13cm

SIMOTICS S-1FL2 AC Servo Motor, 2kW, 2.68HP, 2000rpm, 13.7kg, 24.72x13x13cm

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Torque : 7.16 Nm

Features : AS21bit Absolute Encoder Integrated

Speed : 3000 RPM

Weight : 6.50 Kilograms (kg)

Get a Price/Quote

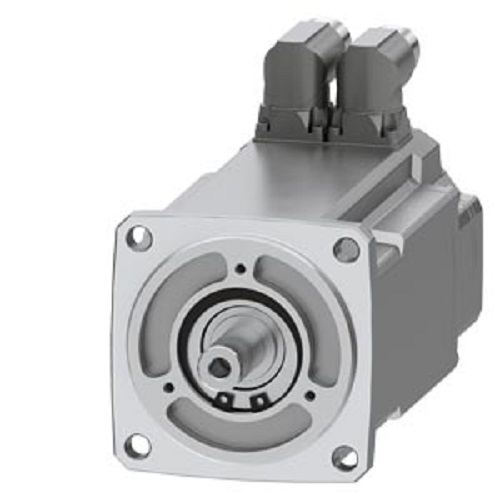

Siemens, SIMOTICS S-1FK2 1FK2104-6AF00-2SB0, 1.1 kW / 0.53 kW, 3-Phase, 380-480 V / 200-240 V
