Siemens, SIMOTICS S-1FK2 1FK2203-2AK10-0MB0, 0.255 kW / 0.2 kW, 3-Phase, 380-480 V / 200-240 V

Siemens, SIMOTICS S-1FK2 1FK2203-2AK10-0MB0, 0.255 kW / 0.2 kW, 3-Phase, 380-480 V / 200-240 V

Send Inquiry

Request To Call Back

Siemens, SIMOTICS S-1FK2 1FK2203-2AK10-0MB0, 0.255 kW / 0.2 kW, 3-Phase, 380-480 V / 200-240 V

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMOTICS S-1FK2 1FK2203-2AK10-0MB0, 0.255 kW / 0.2 kW, 3-Phase, 380-480 V / 200-240 V Specification

Power Rating
255 W

Rated Frequency
50 / 60 Hertz (HZ)

Torque
Static/Stall Torque (M ): 0.64 Nm N-m

Pressure
t, d, a, r, d, , N, t, h, e, r, i, c, ), m, o, s, S, a, n, A, p, /, A, , ( N/m2

Bearing Type
Permanently lubricated deep-groove ball bearings

Starting Type
Frequency inverter optimized (M17 Profile)

Cooling Method
Natural cooling (surface air dissipation)

Noise Level
Low acoustic industrial range db

Ambient Temperature
-15 C to +40 C Celsius (oC)

Standard
CE / cURus / EAC / RoHS Standards

Voltage
200 V ... 480 V AC drive grid spectrum Volt (v)

Horse Power
0.34 HP / 0.27 HP

Efficacy
Premium efficiency permanent magnet rotor

Rated Voltage
400 V / 480 V AC Volt (V)

Features
With integrated mechanical holding brake

Current Type
Alternating Current (AC)

Output Power
255 W (at 6000 rpm) / 200 W (at 3000 rpm) Watt (w)

Frequency (MHz)
N/A (Main grid: 50/60 Hz AC input) Hertz (HZ)

Speed
Rated: 3000 rpm RPM

Power
255 Watt (w)

Color
Industrial Anthracite Gray

Usage & Applications
Precise motion control, dynamic multi-axis machinery

Cable Type
DRIVE-CLiQ plug M17 + M17 Power Connector

Dimension (L*W*H)
Box: 45.2 x 25.0 x 26.7 cm Centimeter (cm)

Operating Temperature
Class 155 (F) Thermal Insulation Limit Fahrenheit (oF)

Weight
1.53 Kilograms (kg)

Warranty
Standard Siemens Lifecycle Warranty

Phase
3-Phase

Display Type
N/A (Handled via external HMI or Drive)

Conductor
High-conductivity copper windings

Rated Current
1.1 A to 1.4 A (load dependent parameters) Ampere (amp)

Frequency
Drive frequency controlled profiles Hertz (HZ)

Material
Heavy-duty industrial aluminum housing

Shaft Diameter
Cylindrical Plain Shaft D1.4 x 3.0 cm Centimeter (cm)

Mounting Type
IM B5 Flange Configuration

Siemens, SIMOTICS S-1FK2 1FK2203-2AK10-0MB0, 0.255 kW / 0.2 kW, 3-Phase, 380-480 V / 200-240 V Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Siemens, SIMOTICS S-1FK2 1FK2203-2AK10-0MB0, 0.255 kW / 0.2 kW, 3-Phase, 380-480 V / 200-240 V About

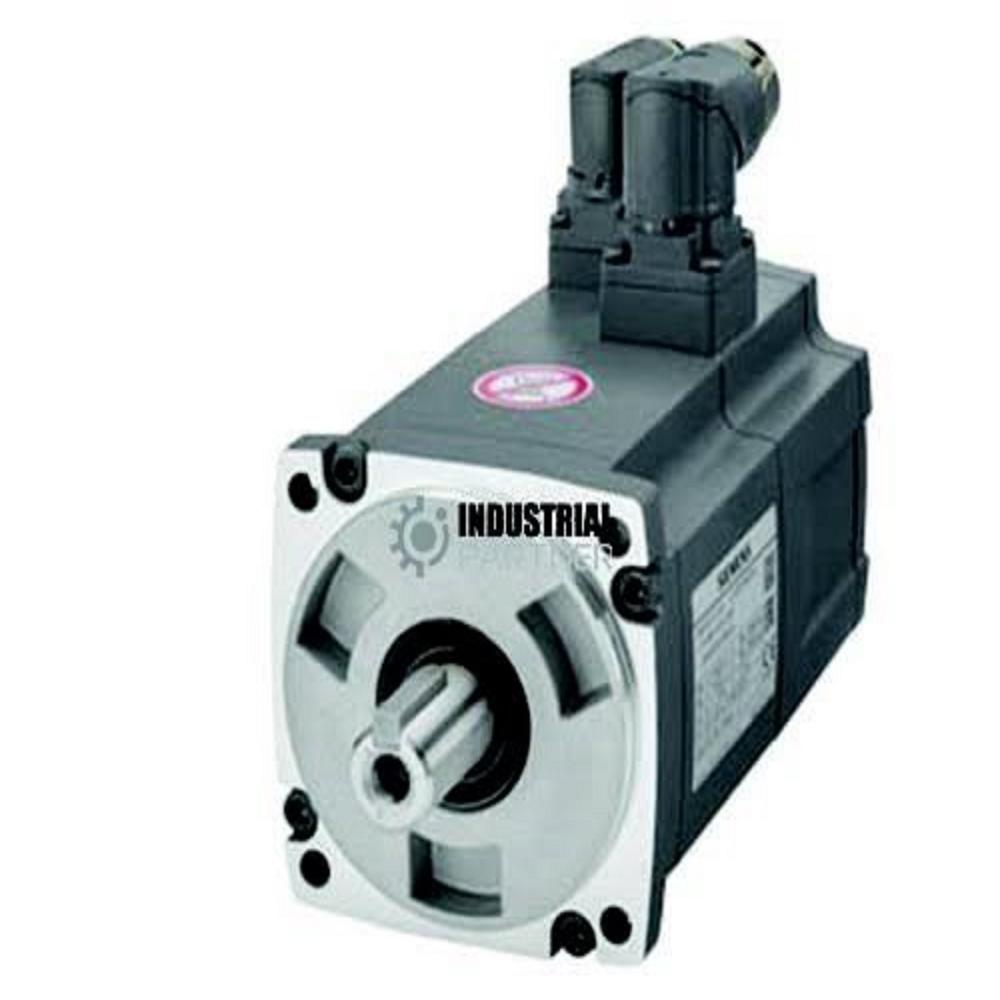

The Siemens SIMOTICS S-1FK2 series model 1FK2203-2AK10-0MB0 is a highly dynamic synchronous CT servo motor designed for high-precision industrial motion control. Running on a flexible 3-phase electrical network, this permanent-magnet motor delivers a rated power output of 0.255 kW at 6000 rpm under a 380-480 V line grid, or 0.2 kW at 3000 rpm on a 200-240 V supply architecture. The assembly is built with an integrated mechanical holding brake, an IP64 degree of environmental protection, a D14 x 30 mm smooth cylindrical shaft, and a high-accuracy 22-bit + 12-bit multi-turn absolute encoder utilizing a standard M17 DRIVE-CLiQ connection profile.
