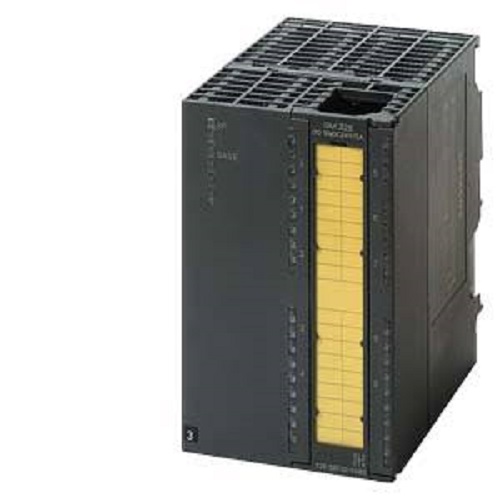

Siemens, SIMATIC S7-300, 6ES7326-1BK02-0AB0, 0 DO, 24 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-300, 6ES7326-1BK02-0AB0, 0 DO, 24 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Output Voltage
24 V DC Volt (V)

Efficiency
~10.0 W Typical Power Loss / Heat Dissipation

Protection Level
IP20

Input Current
Max 100 mA from 5V DC backplane / Max 450 mA from load L+ (no load)

Rated Voltage
24 V DC Volt (V)

Operating Temperature
0 C to +60 C Celsius (oC)

Phase
N/A (Direct Current infrastructure alignment)

Humidity
Max. 95% relative humidity (Non-condensing structural limits)

Mounting Type
S7-300 Rail Profile Mounting

Main Material

Usage
Industrial Safety Automation

Size
8.0 cm Overall Panel Width

Condition
New

Function
SM 326, F-DI 24x24 V DC (Electrically isolated in groups of 12)

Height
12.5 Centimeter (cm)

Application
Critical safety-related loops up to Category 4 (EN 954-1) / SIL 3 / PL e

Product Type
SIMATIC S7-300 Fail-Safe Digital Input Extension Module

Dimension (L*W*H)
12.0 cm x 8.0 cm x 12.5 cm Centimeter (cm)

Weight
0.442 Kilograms (kg)

Power Mode
Other

Color
Industrial Gray

Length
12.0 Centimeter (cm)

Width
8.0 Centimeter (cm)

Voltage
24 V DC Volt (v)

Power Consumption
10.0 Watt (W)

Accessories
Requires 1x 40-pole Front Connector Terminal Block (Ordered Separately)

Warranty
Standard Siemens Factory Warranty

Siemens, SIMATIC S7-300, 6ES7326-1BK02-0AB0, 0 DO, 24 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-300, 6ES7326-1BK02-0AB0, 0 DO, 24 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIMATIC S7-300 SM 326 fail-safe digital input expansion module (model number 6ES7326-1BK02-0AB0) is engineered for high-density safety architectures, featuring 24 safety-oriented digital inputs (DI) alongside 0 digital outputs (DO), 0 analog outputs (AO), and 0 analog inputs (AI). Operating within a single-phase automated control topology, it draws from a standard external 24 V DC voltage supply.

This functional safety card is designed to seamlessly interface with emergency stop buttons, light curtains, and safety interlocks across your factory floor. Using the secure PROFIsafe communication profile over PROFIBUS or PROFINET networks, it performs constant internal diagnostics and sensor crosstalk checks. This module connects to field wiring using a 40-pole front connector and delivers high-level machinery protection up to PL e (ISO 13849-1) or SIL 3 (IEC 61508).
