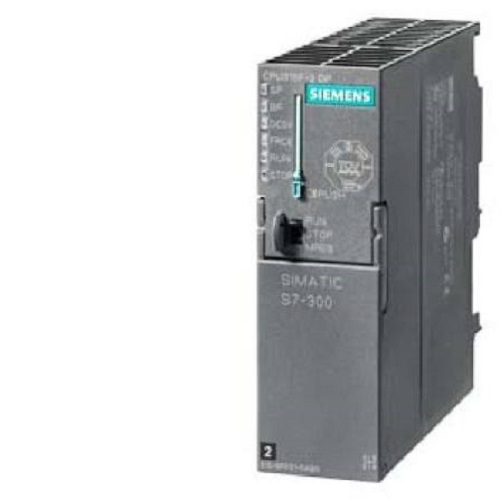

Siemens, SIMATIC S7-300, 6ES7315-6FF04-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-300, 6ES7315-6FF04-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Mounting Type
S7-300 Rail Profile Mounting

Operating Temperature
0 C to +60 C Celsius (oC)

Efficiency
~4.5 W Typical Power Loss / Heat Dissipation

Humidity
Max. 95% relative humidity (Non-condensing)

Rated Voltage
24 V DC Volt (V)

Input Current
Max. 850 mA from 24V DC / Inrush current peaks at 3.5 A

Protection Level
IP20

Main Material

Usage
Industrial Safety Automation

Size
4.0 cm Overall Width

Condition
New

Function
Dual Comms: 1st Interface MPI (RS485) | 2nd Interface PROFIBUS DP Master/Slave

Height
12.5 Centimeter (cm)

Application
Plants with standard and safety-related requirements up to SIL 3 / PL e

Product Type
SIMATIC S7-300 Fail-Safe Central Processing Unit (CPU 315F-2DP)

Weight
0.34 Kilograms (kg)

Dimension (L*W*H)
13.0 cm x 4.0 cm x 12.5 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray

Voltage
24 V DC Volt (v)

Length
13.0 Centimeter (cm)

Width
4.0 Centimeter (cm)

Power Consumption
4.5 Watt (W)

Accessories
Micro Memory Card (MMC) required up to 8 MB capacity (Ordered Separately)

Warranty
Standard Siemens Factory Warranty

Siemens, SIMATIC S7-300, 6ES7315-6FF04-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-300, 6ES7315-6FF04-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIMATIC S7-300 CPU 315F-2 DP central processing unit (model number 6ES7315-6FF04-0AB0) is a modular, fail-safe controller engineered for plants with high functional safety requirements, featuring 0 integrated digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). It relies entirely on external distributed fail-safe I/O modules to interface with field safety devices.

Operating within a single-phase control configuration powered by a standard 24 V DC voltage supply, this safety processor hosts a 192 KB integrated work memory and requires a SIMATIC Micro Memory Card (MMC) for runtime execution. The CPU features a dual-port architecture including one combined MPI/PROFIBUS DP master/slave port (up to 12 Mbit/s) and one dedicated PROFIBUS DP master/slave interface. Utilizing the standard PROFIsafe communication profile, it executes safety-critical user applications up to PL e (ISO 13849-1) or SIL 3 (IEC 61508).
