Siemens, SIMATIC S7-300, 6ES7315-2AH14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-300, 6ES7315-2AH14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Input Current
Max. 850 mA from 24V DC / Inrush current peaks at 3.5 A

Efficiency
~4.5 W Typical Power Loss / Heat Dissipation

Operating Temperature
0 C to +60 C Celsius (oC)

Humidity
Max. 95% relative humidity (Non-condensing)

Protection Level
IP20

Phase
N/A (Direct Current infrastructure alignment)

Rated Voltage
24 V DC Volt (V)

Mounting Type
S7-300 Rail Profile Mounting

Usage
Industrial Automation

Main Material

Size
4.0 cm Overall Width

Condition
New

Height
12.5 Centimeter (cm)

Function
Dual Comms: 1st Interface MPI (RS485) | 2nd Interface PROFIBUS DP Master/Slave

Product Type
SIMATIC S7-300 Standard Central Processing Unit (CPU 315-2DP)

Application
Medium-to-large universal industrial plant logic control with distributed I/O

Dimension (L*W*H)
13.0 cm x 4.0 cm x 12.5 cm Centimeter (cm)

Weight
0.29 Kilograms (kg)

Color
Industrial Gray

Power Mode
Other

Width
4.0 Centimeter (cm)

Length
13.0 Centimeter (cm)

Voltage
24 V DC Volt (v)

Power Consumption
4.5 Watt (W)

Accessories
Micro Memory Card (MMC) required up to 8 MB capacity (Ordered Separately)

Warranty
Standard Siemens Factory Warranty

Siemens, SIMATIC S7-300, 6ES7315-2AH14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-300, 6ES7315-2AH14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

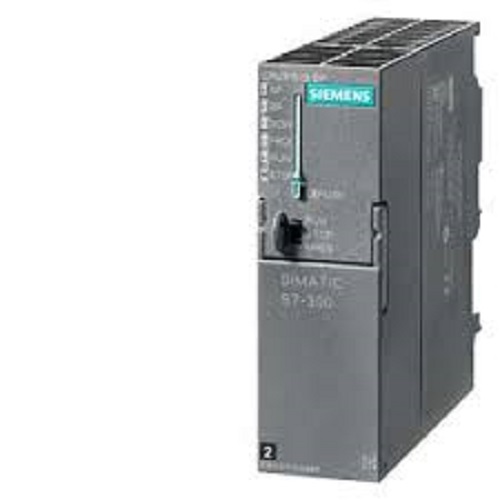

The Siemens SIMATIC S7-300 CPU 315-2 DP central processing unit (model number 6ES7315-2AH14-0AB0) is a modular controller engineered for medium-to-large industrial plants with multi-tier fieldbus requirements, featuring 0 integrated digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). It depends on external local or decentralized I/O structures to process industrial instrumentation data.

Operating within a single-phase control arrangement backed by a standard 24 V DC voltage supply, this processor hosts a 256 KB integrated work memory and requires a SIMATIC Micro Memory Card (MMC) for runtime operation. The CPU is equipped with two integrated communication interfaces: one multi-purpose MPI/PROFIBUS DP master/slave port (up to 12 Mbit/s) and one dedicated PROFIBUS DP master/slave interface, enabling high-speed distributed networking across extensive field device segments.
