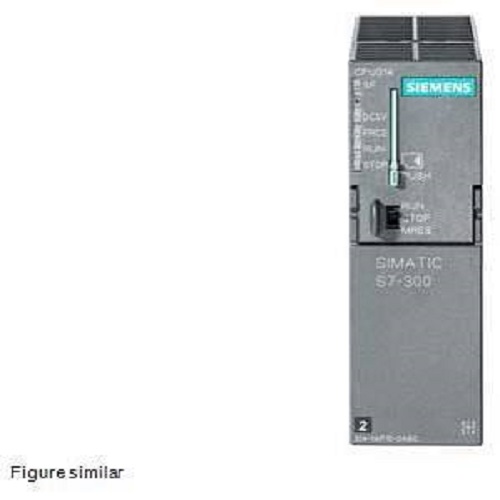

Siemens, SIMATIC S7-300, 6ES7314-1AG14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-300, 6ES7314-1AG14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

Efficiency
~4.0 W Typical Power Loss / Heat Dissipation

Operating Temperature
0 C to +60 C Celsius (oC)

Protection Level
IP20

Rated Voltage
24 V DC Volt (V)

Phase
N/A (Direct Current infrastructure alignment)

Input Current
Max 650 mA from 24V DC / 140 mA in no-load operation

Humidity
Max. 95% relative humidity (Non-condensing)

Mounting Type
S7-300 Rail Profile Mounting

Usage
Industrial Automation

Main Material

Condition
New

Size
4.0 cm Overall Width

Height
12.5 Centimeter (cm)

Product Type
SIMATIC S7-300 Compact Central Processing Unit (CPU 314)

Application
Medium-scale universal industrial machine logic control

Weight
0.28 Kilograms (kg)

Dimension (L*W*H)
13.0 cm x 4.0 cm x 12.5 cm Centimeter (cm)

Power Mode
Other

Color
Industrial Gray

Width
4.0 Centimeter (cm)

Voltage
24 V DC Volt (v)

Length
13.0 Centimeter (cm)

Power Consumption
4.0 Watt (W)

Accessories
Micro Memory Card (MMC) required for operation (Ordered Separately)

Warranty
Standard Siemens Factory Warranty

Siemens, SIMATIC S7-300, 6ES7314-1AG14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-300, 6ES7314-1AG14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

The Siemens SIMATIC S7-300 CPU 314 central processing unit (model number 6ES7314-1AG14-0AB0) is a modular controller engineered for medium-scale industrial processing lines, featuring 0 integrated digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). It relies on external multi-tier backplane signal modules to process field instrumentation data.

Operating within a single-phase control arrangement backed by a standard external 24 V DC voltage supply, this processor hosts a 128 KB integrated work memory and requires a SIMATIC Micro Memory Card (MMC) for long-term project backups. The CPU is equipped with an integrated Multi-Point Interface (MPI) serial port, enabling programming, local HMI visualization networks, and peer-to-peer S7 data communication at speeds up to 187.5 Kbit/s.
