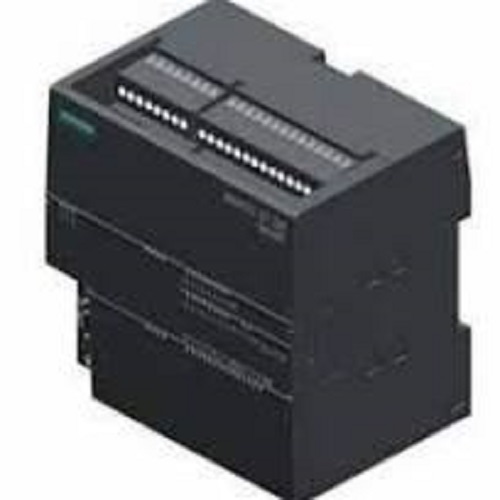

Siemens SIMATIC S7-200 SMART CPU SR40 Central Processing Unit, 85-264V AC Power Supply, 24 Digital Inputs (24V DC) / 16 Relay Outputs (2A)

Price 29999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-200 SMART CPU SR40 Central Processing Unit, 85-264V AC Power Supply, 24 Digital Inputs (24V DC) / 16 Relay Outputs (2A) Specification

Operating Temperature
0 C to +55 C equivalent industrial grade Celsius (oC)

Efficiency
High-density cost-effective processing for standalone rigs

Output Voltage
5 V to 30 V DC / 5 V to 250 V AC (Relay output) Volt (V)

Phase
Single-Phase Line Network

Protection Level
IP20 Protection Rating

Humidity
Max. 95% operational humidity (non-condensing)

Frequency
47 Hz to 63 Hz line frequency Hertz (HZ)

Mounting Type
35 mm Top-Hat DIN Rail or panel wall installation

Rated Voltage
120 / 230 V AC operational rating Volt (V)

Input Current
Max. 300 mA at 120 V AC / 16.3 A Inrush current

Usage
Small-scale industrial automation, machine builder tools

Main Material

Processing Type
Standard

Size
125 mm wide compact micro-PLC footprint

Condition
New

Height
10.0 Centimeter (cm)

Function
24 DI / 16 DO processing up to 40 KB program

Application
Packaging machinery, pump automation, test benches

Product Type
SIMATIC S7-200 SMART CPU Module

Dimension (L*W*H)
8.1 x 12.5 x 10.0 cm Centimeter (cm)

Weight
441.3 Grams (g)

Power Mode
Other

Color
Industrial Gray

Length
8.1 Centimeter (cm)

Width
12.5 Centimeter (cm)

Voltage
85 V to 264 V AC Volt (v)

Battery Life
Maintenance-free RTC backup (approx. 7 days buffer) Days

Accessories
CM01 Signal board, EM expansion modules, microSD

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-200 SMART CPU SR40 Central Processing Unit, 85-264V AC Power Supply, 24 Digital Inputs (24V DC) / 16 Relay Outputs (2A) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-200 SMART CPU SR40 Central Processing Unit, 85-264V AC Power Supply, 24 Digital Inputs (24V DC) / 16 Relay Outputs (2A)

The Siemens 6ES7288-1SR40-0AA0 is a SIMATIC S7-200 SMART CPU SR40 PLC designed for compact machine and industrial automation applications. It operates on an 85264 V AC power supply and features 24 digital inputs (24 V DC), 16 relay outputs (2 A), 40 KB program/data memory, built-in high-speed counters and pulse outputs, optional microSD memory card support, and programming with STEP 7 Micro/WIN SMART. It is DIN rail mountable and ideal for standalone machine control and OEM applications.
