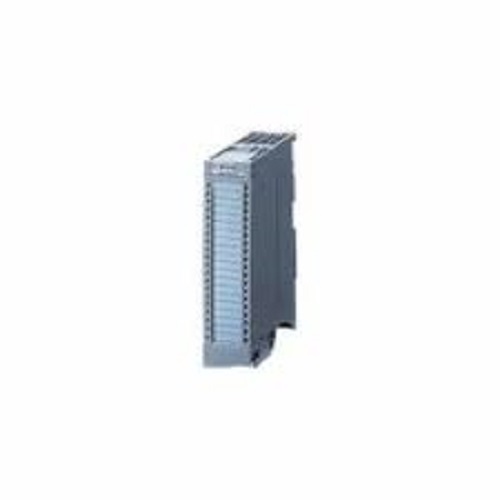

Siemens SIMATIC S7-1500 Digital Output Module DQ 8x230VAC/2A ST Triac, 8 AC Outputs in Groups of 1, 2A Max Output Current per Group, Substitute Value Support.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-1500 Digital Output Module DQ 8x230VAC/2A ST Triac, 8 AC Outputs in Groups of 1, 2A Max Output Current per Group, Substitute Value Support. Specification

Output Voltage
120 / 230 V AC (Permitted range: 0 to 264 V AC) Volt (V)

Frequency
47 Hz to 63 Hz line frequency Hertz (HZ)

Phase
Radio interference suppression Class B equivalent

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Efficiency
High reliability with integrated MSO operating mode

Input Current
Supply voltage requirement: 24 V DC internal

Protection Level
IP20 Protection Rating

Operating Temperature
0 C to +60 C (Horizontal deployment standard) Celsius (oC)

Rated Voltage
230 V AC Volt (V)

Humidity
Standard non-condensing industrial operation limits

Usage
Actuator switching, heavy industrial AC load control

Main Material

Size
35 mm slim modular space footprint

Condition
New

Function
8 Channels in groups of 1 (2 A per group)

Height
14.7 Centimeter (cm)

Application
Contactors, solenoid valves, AC motor starters

Product Type
SIMATIC S7-1500 Digital Output Module

Weight
290 Grams (g)

Dimension (L*W*H)
12.9 x 3.5 x 14.7 cm Centimeter (cm)

Color
Industrial Gray / Dark Anthracite

Power Mode
Other

Length
12.9 Centimeter (cm)

Width
3.5 Centimeter (cm)

Voltage
120 V / 230 V AC Volt (v)

Power Consumption
0.9 W from backplane bus / 10.8 W loss Watt (W)

Accessories
40-pin Front Connector (Screw/Push-in)

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-1500 Digital Output Module DQ 8x230VAC/2A ST Triac, 8 AC Outputs in Groups of 1, 2A Max Output Current per Group, Substitute Value Support. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-1500 Digital Output Module DQ 8x230VAC/2A ST Triac, 8 AC Outputs in Groups of 1, 2A Max Output Current per Group, Substitute Value Support.

The Siemens 6ES7522-5FF00-0AB0 is a SIMATIC S7-1500 SM 522 digital output module designed to expand the output capacity of S7-1500 PLCs. It provides 8 digital TRIAC outputs rated at 230 V AC, 2 A per channel, with each channel individually grouped. The module supports substitute value functionality, diagnostics, and requires a separate front connector (screw or push-in type). It is ideal for switching AC loads in machine control, process automation, and industrial automation applications.
