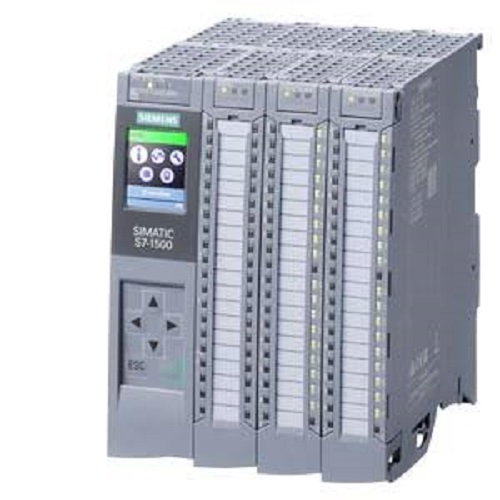

Siemens SIMATIC S7-1500 Compact CPU 1512C-1 PN Central Processing Unit, 24V DC, 1.25 MB Total Work Memory (250 KB Program / 1 MB Data), 32 Digital Inputs / 32 Digital Outputs, 5 Analog Inputs / 2 Analog Outputs, 6 High Speed Counters.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-1500 Compact CPU 1512C-1 PN Central Processing Unit, 24V DC, 1.25 MB Total Work Memory (250 KB Program / 1 MB Data), 32 Digital Inputs / 32 Digital Outputs, 5 Analog Inputs / 2 Analog Outputs, 6 High Speed Counters. Specification

Frequency
DC operation (Not applicable for AC frequency) Milihertz

Mounting Type
SIMATIC S7-1500 DIN Rail installation

Rated Voltage
24 V DC Volt (V)

Phase
Radio interference suppression Class B equivalent

Protection Level
IP20 Protection Rating

Input Current
Permissible range: 19.2 V to 28.8 V DC

Humidity
Standard non-condensing industrial operation limits

Efficiency
Ultra-fast 48 ns bit processing execution speed

Operating Temperature
0 C to +60 C (Horizontal installation) Celsius (oC)

Output Voltage
24 V DC / Backplane communication bus Volt (V)

Usage
Advanced industrial automation, high-performance plant control

Main Material

Processing Type
Standard

Condition
New

Size
110 mm compact integrated I/O space layout

Function
32 DI / 32 DQ / 5 AI / 2 AO integrated control

Height
14.7 Centimeter (cm)

Application
Factory production lines, packaging, high-speed counting

Product Type
SIMATIC S7-1500 Compact CPU

Dimension (L*W*H)
12.9 x 11.0 x 14.7 cm Centimeter (cm)

Weight
1320 Grams (g)

Color
Industrial Gray / Dark Anthracite

Power Mode
Other

Voltage
24 V DC Volt (v)

Width
11.0 Centimeter (cm)

Length
12.9 Centimeter (cm)

Power Consumption
Max. 11.8 W power loss / 0.95 A rated input Watt (W)

Battery Life
Maintenance-free backup without battery (retentive memory) Years

Accessories
Push-In Front Connector, SIMATIC Memory Card

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-1500 Compact CPU 1512C-1 PN Central Processing Unit, 24V DC, 1.25 MB Total Work Memory (250 KB Program / 1 MB Data), 32 Digital Inputs / 32 Digital Outputs, 5 Analog Inputs / 2 Analog Outputs, 6 High Speed Counters. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-1500 Compact CPU 1512C-1 PN Central Processing Unit, 24V DC, 1.25 MB Total Work Memory (250 KB Program / 1 MB Data), 32 Digital Inputs / 32 Digital Outputs, 5 Analog Inputs / 2 Analog Outputs, 6 High Speed Counters.

The Siemens 6ES7512-1CK00-0AB0 is a SIMATIC S7-1500 CPU 1512C-1 PN compact PLC designed for compact and medium-sized automation applications. It features 250 KB program memory, 1 MB data memory, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high-speed counters, 4 PTO/PWM high-speed outputs, and an integrated PROFINET IRT interface with a 2-port switch. The CPU requires a SIMATIC Memory Card, is programmable with TIA Portal, and is ideal for machine control and industrial automation. This model is a spare part and has been replaced by the 6ES7512-1CK01-0AB0.
