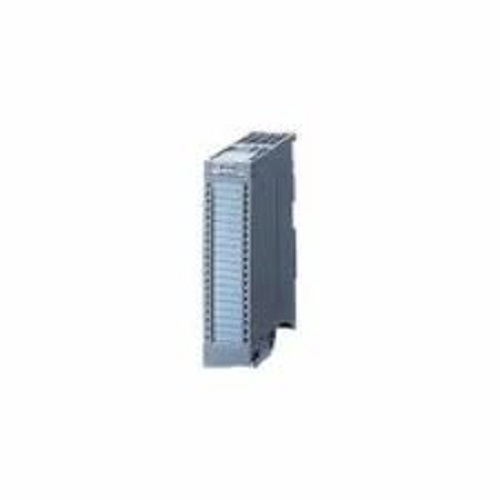

Siemens, SIMATIC S7-1500, 6ES7522-5HF00-0AB0, N/A (Digital Output Relay Module), 1-Phase (via 24V DC Relay Coil Supply), 24 V DC / 230 V AC.

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens, SIMATIC S7-1500, 6ES7522-5HF00-0AB0, N/A (Digital Output Relay Module), 1-Phase (via 24V DC Relay Coil Supply), 24 V DC / 230 V AC. Specification

Protection Level
IP20 Protection Rating

Rated Voltage
230 V AC load voltage rating Volt (V)

Humidity
Standard non-condensing industrial operation limits

Phase
Single-Phase AC Load / DC contact routing

Operating Temperature
0 C to +60 C (Horizontal deployment standard) Celsius (oC)

Output Voltage
24V-120V DC / 24V-230V AC output range Volt (V)

Input Current
Supply voltage range: 19.2 V to 28.8 V DC

Efficiency
Built-in switching cycle counter for relay diagnostics

Frequency
47 Hz to 63 Hz (for AC load switching) Hertz (HZ)

Mounting Type
SIMATIC S7-1500 Mounting Rail installation

Main Material

Usage
Actuator switching, heavy load industrial controls

Processing Type
Standard

Condition
New

Size
35 mm slim high-capacity relay profile

Height
14.7 Centimeter (cm)

Function
8 Channels in groups of 1 (5 A per group)

Product Type
SIMATIC S7-1500 Digital Output Module

Application
Solenoid valves, DC contactors, indicator lights

Weight
350 Grams (g)

Dimension (L*W*H)
12.9 x 3.5 x 14.7 cm Centimeter (cm)

Color
Industrial Gray / Dark Anthracite

Power Mode
Other

Voltage
24 V DC (Relay Coils Supply) Volt (v)

Length
12.9 Centimeter (cm)

Width
3.5 Centimeter (cm)

Accessories
40-pin Front Connector (Screw/Push-in)

Warranty
Standard manufacturer/distributor warranty

Siemens, SIMATIC S7-1500, 6ES7522-5HF00-0AB0, N/A (Digital Output Relay Module), 1-Phase (via 24V DC Relay Coil Supply), 24 V DC / 230 V AC. Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens, SIMATIC S7-1500, 6ES7522-5HF00-0AB0, N/A (Digital Output Relay Module), 1-Phase (via 24V DC Relay Coil Supply), 24 V DC / 230 V AC.

The Siemens SIMATIC S7-1500 series digital output relay module, model number 6ES7522-5HF00-0AB0, provides safe load-switching capabilities within automated processing plants. Operating purely as an expansion interface, it does not carry an applicable kw/hp rating and utilizes a 24 V DC supply voltage to power its internal coils. Acting on a single-phase wiring framework with 8 channels arranged in independent groups of 1, it safely switches high-capacity operating loads up to a rated 230 V AC.
