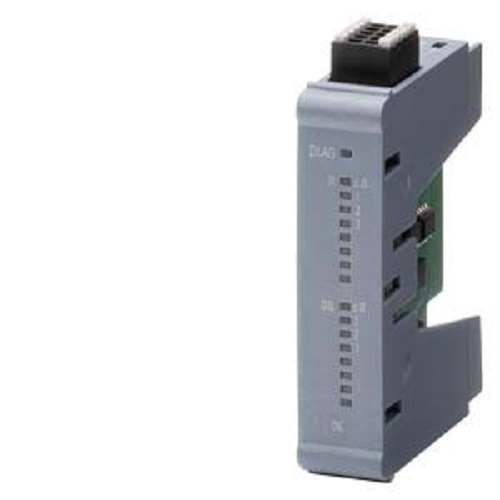

Siemens SIMATIC S7-1200 G2 Analog Input Signal Board

The Siemens 6ES7231-4HD50-0XB0 is a next-generation SIMATIC S7-1200 G2 SB 1231 analog input signal board engineered to expand instrumentation logging without altering the physical dimensions or side-rail footprint of the PLC configuration as detailed on Siemens Product Information. Instead of clicking onto a lateral DIN rail track, this ultra-compact component mounts directly into the dedicated front-facing signal slot on standard S7-1200 G2 CPUs.The board introduces localized data acquisition capabilities by adding four analog inputs powered by a fast 14-bit ADC architecture shown on Industry Mall. Optimized for flexible system adaptation, each differential channel can be custom configured in pairs to interpret standard industrial vectors, including voltage ranges (10V, 5V, 2.5V) or current loops (020 mA, 420 mA). It functions with an efficient 1.4W thermal footprint and features built-in electrical protection filters.
