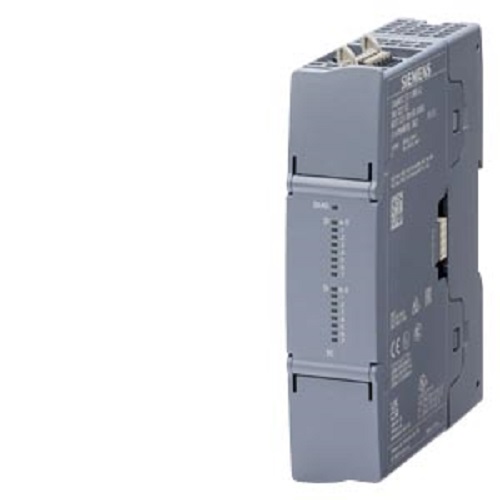

Siemens SIMATIC S7-1200 G2 Analog Input Module

Siemens SIMATIC S7-1200 G2 Analog Input Module About

The Siemens 6ES7231-4HF50-0XB0 is a next-generation SIMATIC S7-1200 G2 SM 1231 analog input module engineered for high-precision data logging in mid-range process control networks. This high-efficiency expansion module supplements the host CPU matrix by adding eight analog inputs with a precise 12-bit analog-to-digital conversion resolution (13-bit internal architecture).Designed for versatile field instrumentation deployment, the individual differential channels can be custom configured in pairs. They natively process standard industrial variables, including voltage ranges (10V, 5V, 2.5V, 010V) and current loop signals (020 mA, 420 mA). Housed in a compact, 30mm-wide IP20-protected shell tailored for 35mm DIN rail layouts, it operates with a low thermal impact of just 1.5W typical power loss. The module features integrated interference frequency filters, configurable smoothing parameters, and front-facing diagnostic status LEDs for swift loop troubleshooting.
