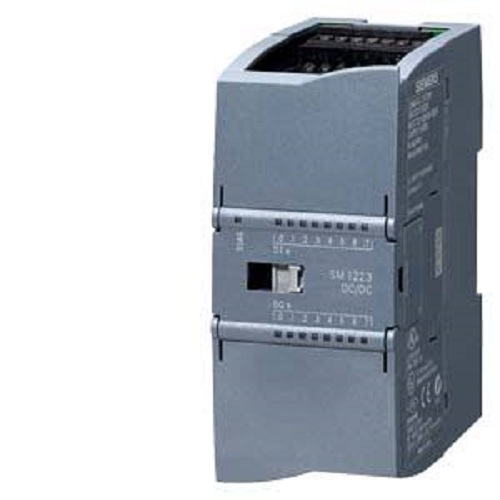

Siemens SIMATIC S7-1200 Digital IO SM 1223 Expansion Module, 24V DC, 8 Digital Inputs (Sink/Source) / 8 Transistor Outputs (0.5A).

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens SIMATIC S7-1200 Digital IO SM 1223 Expansion Module, 24V DC, 8 Digital Inputs (Sink/Source) / 8 Transistor Outputs (0.5A). Specification

Efficiency
High-density cost-effective processing for I/O tracking

Protection Level
IP20 Protection Rating

Rated Voltage
24 V DC Volt (V)

Output Voltage
24 V DC (0.5 A Transistor outputs) Volt (V)

Humidity
Max. 95% operational humidity (non-condensing)

Phase
DC current system

Operating Temperature
-20 C to +60 C (Horizontal deployment) Celsius (oC)

Input Current
Permissible range: 20.4 V to 28.8 V DC

Mounting Type
35 mm DIN Rail or wall cabinet panel layout

Main Material

Usage
PLC digital expansion for industrial automation loops

Processing Type
Standard

Condition
New

Size
45 mm space-saving compact design footprint

Height
10.0 Centimeter (cm)

Function
8 Digital Input / 8 Transistor Output sync logic

Application
Factory production, signal routing, dynamic switches

Product Type
SIMATIC S7-1200 Digital I/O Module

Dimension (L*W*H)
7.5 x 4.5 x 10.0 cm Centimeter (cm)

Weight
210 Grams (g)

Power Mode
Other

Color
Industrial Gray

Width
4.5 Centimeter (cm)

Voltage
24 V DC Volt (v)

Length
7.5 Centimeter (cm)

Accessories
Terminal block connectors, Connecting cables

Warranty
Standard manufacturer/distributor warranty

Siemens SIMATIC S7-1200 Digital IO SM 1223 Expansion Module, 24V DC, 8 Digital Inputs (Sink/Source) / 8 Transistor Outputs (0.5A). Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens SIMATIC S7-1200 Digital IO SM 1223 Expansion Module, 24V DC, 8 Digital Inputs (Sink/Source) / 8 Transistor Outputs (0.5A).

The Siemens 6ES7223-1BH32-0XB0 is a SIMATIC S7-1200 SM 1223 digital I/O module designed to expand the I/O capacity of S7-1200 PLCs. It operates on a 24 V DC power supply and provides 8 digital inputs (24 V DC, sink/source) and 8 transistor digital outputs (24 V DC, 0.5 A). The module supports configurable input delay, mounts on a standard DIN rail, and is ideal for machine control, process automation, and industrial control applications.
