Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
images Send Inquiry
Request To Call Back
  • Home
  • Products
  • Siemens Plc
  • Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

  • Efficiency
  • ~0.5 W Typical Power Loss / Heat Dissipation
  • Operating Temperature
  • -20 C to +60 C Celsius (oC)
  • Mounting Type
  • Direct plug-in slot on top of S7-1200 CPU front cover
  • Protection Level
  • IP20
  • Input Current
  • Typ. 11 mA draw from S7 backplane bus
  • Rated Voltage
  • 5 V DC Volt (V)
  • Humidity
  • Max. 95% relative humidity at 25 C (Non-condensing)
  • Usage
  • Industrial Automation
  • Size
  • 3.8 cm Overall Width
  • Condition
  • New
  • Height
  • 6.2 Centimeter (cm)
  • Function
  • BB 1297 Battery Board (Supported on FW3.0 or higher base units)
  • Product Type
  • Real-Time Clock (RTC) Long-Term Buffering Module
  • Application
  • Long-term buffer security for the real-time clock inside S7-1200 systems
  • Weight
  • 0.028 Kilograms (kg)
  • Dimension (L*W*H)
  • 2.1 cm x 3.8 cm x 6.2 cm Centimeter (cm)
  • Power Mode
  • Other
  • Color
  • Industrial Gray
  • Width
  • 3.8 Centimeter (cm)
  • Length
  • 2.1 Centimeter (cm)
  • Voltage
  • 3 V DC Volt (v)
  • Power Consumption
  • 0.5 Watt (W)
  • Accessories
  • Requires Button Cell Battery Type CR1025
  • Warranty
  • Standard Siemens Factory Warranty


Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

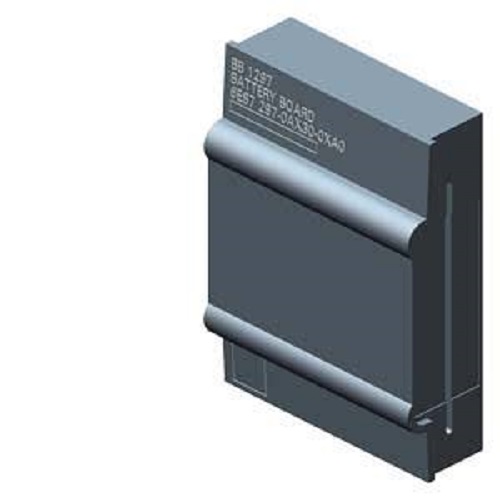

The Siemens SIMATIC S7-1200 BB 1297 battery board (model number 6ES7297-0AX30-0XA0) is a specialised clock buffering accessory engineered with 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Operating on a single-phase architecture drawing power straight through the host's backplane bus at a standard 24 V DC voltage rating, it is designed for long-term power backup of the CPU's real-time clock (RTC) during extended system shutdowns. [1, 2, 3, 4, 5]
This compact board plugs directly into the front signal board receptacle slot of any S7-1200 CPU running firmware version 3.0 or higher. It houses a standard CR1025 coin cell battery (not included in the basic scope of delivery) and communicates state changes via the PLC's integrated maintenance LED (MAINT) to signal when a battery replacement is due.
Siemens, SIMATIC S7-1200, 6ES7297-0AX30-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Siemens Plc Category

Siemens, SIPLUS S7-1200, 6AG1222-1XF32-4XB0, 8 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Siemens, SIPLUS S7-1200, 6AG1222-1XF32-4XB0, 8 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Size : 4.5 cm Overall Width (S71200 single width)

Power Mode : Other

Warranty : Standard Siemens Factory Warranty

Voltage : 24 V DC Volt (v)

Get a Price/Quote
Siemens, SIPLUS S7-1200, 6AG1212-1BE40-2XB0, 6 DO, 8 DI, 0 AO, 2 AI, Single-phase, 120/230 V AC.

Siemens, SIPLUS S7-1200, 6AG1212-1BE40-2XB0, 6 DO, 8 DI, 0 AO, 2 AI, Single-phase, 120/230 V AC.

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Size : 9.0 cm Overall Width

Power Mode : Other

Warranty : Standard Siemens Factory Warranty

Voltage : 120 V AC Volt (v)

Get a Price/Quote
Siemens, SIMATIC S7-1200, 6ES7222-1AD30-0XB0, 4 DO, 0 DI, 0 AO, 0 AI, Single-phase, 5 V DC.

Siemens, SIMATIC S7-1200, 6ES7222-1AD30-0XB0, 4 DO, 0 DI, 0 AO, 0 AI, Single-phase, 5 V DC.

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Size : 3.8 cm Overall Width

Power Mode : Other

Warranty : Standard Siemens Factory Warranty

Voltage : 5 V DC Volt (v)

Get a Price/Quote

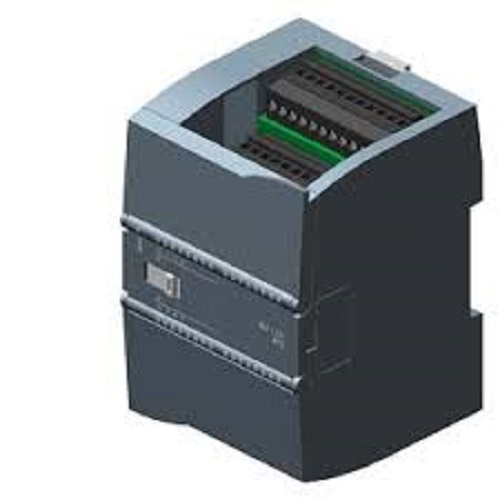

Siemens, SIPLUS S7-1200, 6AG1231-5PF32-4XB0, 0 DO, 0 DI, 0 AO, 8 AI, Single-phase, 24 V DC.
