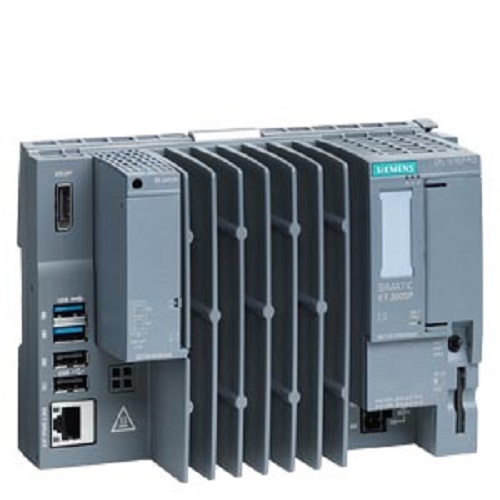

Siemens SIMATIC ET 200SP Open Controller (Standard Windows)

Siemens SIMATIC ET 200SP Open Controller (Standard Windows) About

The Siemens 6ES7677-2DB42-0GB0 is a high-performance SIMATIC ET 200SP Open Controller CPU 1515SP PC2, engineered to combine standard PLC control loop logic with PC-based edge computing algorithms into a single rail-mounted module. Equipped with 8 GB of RAM and a fast 128 GB CFast card for secure data logging and system storage, it runs on a pre-installed 64-bit version of Windows 10 IoT Enterprise LTSC 2019.Optimized for turnkey machine automation without localized visualization software burdens, the hardware comes pre-configured with the S7-1500 Software Controller (CPU 1505SP V2x). The IP20-rated hardware offers versatile connectivity interfaces, including one Gigabit Ethernet port, a dedicated PROFINET BusAdapter terminal, four USB ports (two USB 3.0 and two USB 2.0), a DisplayPort, and a supporting SD/MMC storage expansion slot.
