Siemens, SIMATIC DP, 6ES7972-0BB12-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SIMATIC DP, 6ES7972-0BB12-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

  • Output Voltage
  • 0 Volt (V)
  • Efficiency
  • Highly efficient data trace bridge with negligible insertion loss
  • Mounting Type
  • 9-Pin Sub-D Male/Female Plugging Link to Node Terminal
  • Phase
  • N/A (Direct Current infrastructure alignment)
  • Protection Level
  • IP20
  • Humidity
  • Max. 95% relative humidity (Non-condensing)
  • Operating Temperature
  • 0 C to +60 C Celsius (oC)
  • Input Current
  • Max. 10 mA (Traced internally from active node)
  • Rated Voltage
  • 5 V DC Volt (V)
  • Usage
  • Industrial Automation Networks
  • Main Material
  • Condition
  • New
  • Size
  • 1.58 cm Overall Width
  • Function
  • RS485 Segment Connecting Terminal with Terminating Resistor and PG Interface
  • Height
  • 5.4 Centimeter (cm)
  • Application
  • Connects standard PROFIBUS nodes to the RS485 line while allowing PG piggyback connection
  • Product Type
  • PROFIBUS DP Bus Connector Interface Block with Programming Interface
  • Weight
  • 0.045 Kilograms (kg)
  • Dimension (L*W*H)
  • 3.4 cm x 1.58 cm x 5.4 cm Centimeter (cm)
  • Power Mode
  • Other
  • Color
  • Industrial Gray
  • Voltage
  • 4.75 V DC Volt (v)
  • Width
  • 1.58 Centimeter (cm)
  • Length
  • 3.4 Centimeter (cm)
  • Accessories
  • Integrated Slide-Switch for Active Terminal Resistor Isolation
  • Warranty
  • Standard Siemens Factory Warranty


Siemens, SIMATIC DP, 6ES7972-0BB12-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SIMATIC DP, 6ES7972-0BB12-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

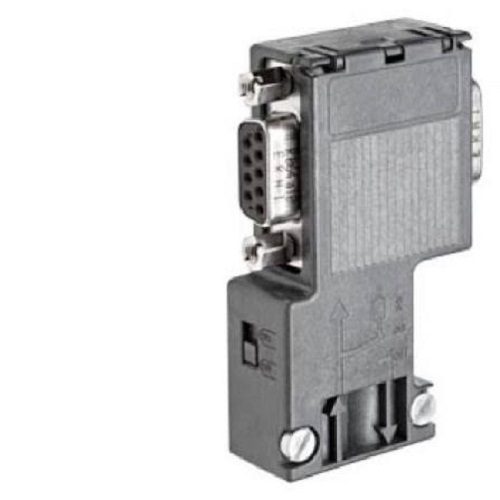

The Siemens SIMATIC DP PROFIBUS bus connector (model number 6ES7972-0BB12-0XA0) is a specialized networking connection plug featuring 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Operating inside a single-phase automated layout drawing data loop power through standard 24 V DC communication links, it connects physical nodes to an RS-485 fieldbus network.
The compact plug incorporates a space-saving 90-degree angled cable outlet and uses secure screw terminals to attach up to two separate FastConnect PROFIBUS cables at high transmission speeds up to 12 Mbit/s. This specific variant features an integrated switchable terminating resistor with an isolating function to eliminate data reflections at network ends. Crucially, it includes an integrated PG programming socket, allowing engineering staff to attach programming laptops or diagnostic tools directly to the node without interrupting bus communications.
Siemens, SIMATIC DP, 6ES7972-0BB12-0XA0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Siemens Plc Category

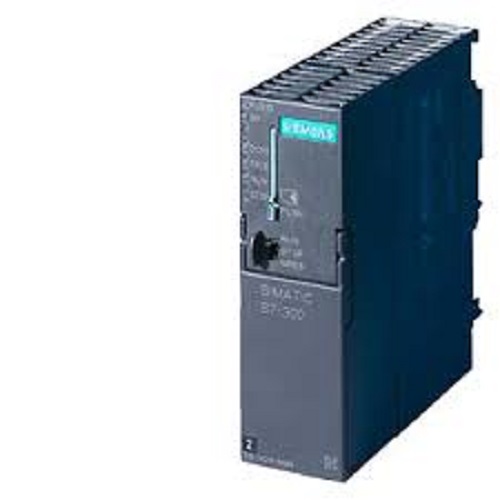

Siemens, SIMATIC S7-300, 6ES7312-1AE14-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
