Siemens, SCALANCE, 6GK5774-1FX00-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
Siemens, SCALANCE, 6GK5774-1FX00-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.
images Send Inquiry
Request To Call Back

Siemens, SCALANCE, 6GK5774-1FX00-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Siemens, SCALANCE, 6GK5774-1FX00-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Specification

  • Rated Voltage
  • 24 V DC Volt (V)
  • Operating Temperature
  • -20 C to +60 C Celsius (oC)
  • Humidity
  • Max. 95% relative humidity (Non-condensing)
  • Input Current
  • Typ. 250 mA from redundant 24V DC terminal link
  • Protection Level
  • IP30
  • Mounting Type
  • 35 mm DIN Rail / S7-300 Rail / S7-1500 Rail / Wall Mount
  • Phase
  • N/A (Direct Current configuration)
  • Efficiency
  • Supports Power over Ethernet (PoE) on integrated switch lines
  • Main Material
  • Usage
  • Industrial Wireless Communications & Machine Networking
  • Condition
  • New
  • Size
  • 2.6 cm Overall Panel Width
  • Function
  • 1 Radio System / 2 R-SMA Connectors / Dual-Band Support
  • Height
  • 14.7 Centimeter (cm)
  • Application
  • High-reliability wireless networking for AGVs, overhead monorails, or cabinets
  • Product Type
  • SCALANCE W Industrial Wireless LAN Access Point
  • Dimension (L*W*H)
  • 12.7 cm x 2.6 cm x 14.7 cm Centimeter (cm)
  • Weight
  • 0.621 Kilograms (kg)
  • Power Mode
  • Other
  • Color
  • Industrial Gray / Silver
  • Voltage
  • 24 V DC Volt (v)
  • Length
  • 12.7 Centimeter (cm)
  • Width
  • 2.6 Centimeter (cm)
  • Power Consumption
  • 6.0 Watt (W)
  • Accessories
  • Includes manual CD-ROM, 1x joint block terminal connector
  • Warranty
  • Standard Siemens Factory Warranty


Siemens, SCALANCE, 6GK5774-1FX00-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Siemens, SCALANCE, 6GK5774-1FX00-0AB0, 0 DO, 0 DI, 0 AO, 0 AI, Single-phase, 24 V DC.

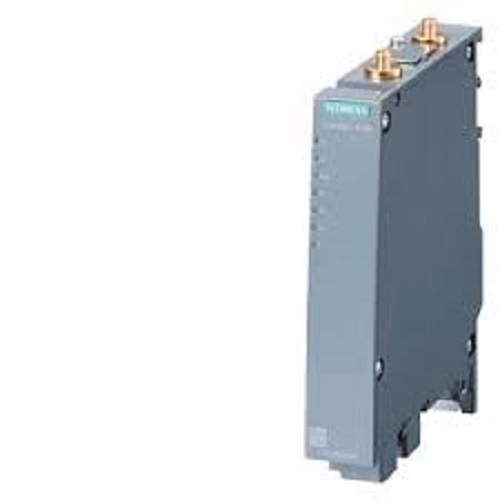

The Siemens SCALANCE W774-1 RJ45 (USA) Industrial Wireless LAN (IWLAN) access point (model number 6GK5774-1FX00-0AB0) provides ruggedized, high-speed wireless connectivity for control cabinet and wall-mounted automation platforms. It features 0 digital outputs (DO), 0 digital inputs (DI), 0 analog outputs (AO), and 0 analog inputs (AI). Powered via a single-phase redunant external 24 V DC terminal block connection or Power over Ethernet (PoE), the device operates seamlessly as a core networking element.
This managed access point contains a single wireless radio interface with two R-SMA external antenna ports, supporting dual-band 2.4 GHz and 5 GHz networks under IEEE 802.11a/b/g/h/n standards at gross data transmission rates up to 300 Mbps. It includes an integrated 2-port Industrial Ethernet RJ45 switch supporting speeds up to 100 Mbps. Housed in an IP30-rated compact enclosure, it includes a plug-in slot supporting premium iFeatures through a KEY-PLUG hardware token and manages high-level enterprise encryption via WPA2/802.11i protocols across industrial climates from -20 to +60 C.
