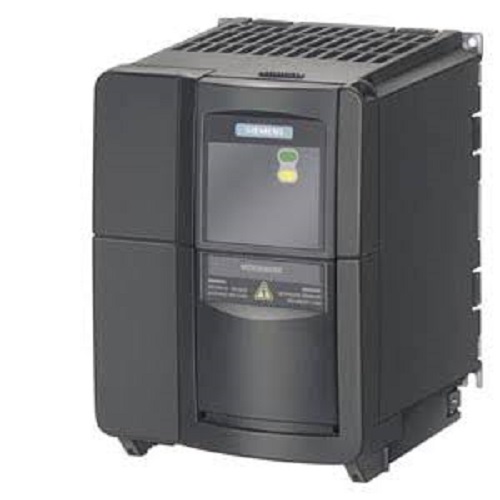

Siemens MICROMASTER 420 AC Inverter Drive (6SE6420-2UC22-2BA1), 3-Phase 240V output, 10.4 A rated current, Frame Size FSB, unfiltered, IP20 cubicle-mount motor controller

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Siemens MICROMASTER 420 AC Inverter Drive (6SE6420-2UC22-2BA1), 3-Phase 240V output, 10.4 A rated current, Frame Size FSB, unfiltered, IP20 cubicle-mount motor controller Specification

Shape
Rectangular Cube Booksize Form Factor

Efficiency
0.96 Efficiency ( )

Surface Finish
Matte Textured Industrial Finish

IP Rating
IP20

Humidity %
Max 95% Relative Humidity (non-condensing)

Feature
High Overload Capability (150% current for 60s)

Mounting Type
Cubicle / Wall Panel Mount

Connector Type
Gland Plate / I/O Interface Terminal Rails

Insulation Material
Polycarbonate High-Grade Protective Insulation

Operating Temperature
-10 C to +50 C Celsius (oC)

Power Factor
0.95 Power Factor ( )

Power Rating
2.2 kW Power Class Capacity

Product Type
AC Variable Frequency Inverter Drive (VFD)

Application
Dynamic speed control of low-voltage induction motors

Energy Consumption
2.20 Kilowatt-hour ( KWH)

Output Type
Variable Frequency 3-Phase AC

Color
Industrial Siemens Grey / Slate Black

Dimension (L*W*H)
18.0 cm x 23.5 cm x 25.0 cm Centimeter (cm)

Usage & Applications
Conveyors, fans, pumps, mixers, and lift automation

Rated Voltage
240 Volt (V)

Weight
3.30 Kilograms (kg)

Warranty
Standard 12-Month Manufacturer Warranty

Cable Type
Unshielded/Shielded Motor Run Supply Cables

Phase
1 AC (Input) / 3 AC (Output)

Size
17.2 cm x 14.9 cm x 20.2 cm (Unit HxWxD)

Input Voltage
240 Volt (V)

Connection Type
Screw Terminals for Power / Control Wiring Blocks

No Of Poles
N/A (3-Phase Motor Side Execution)

Rated Current
20.20 A Input Ampere (amp)

Material
Industrial Grade Thermoplastic Engine Polycarbonate

Conductor
Standard Copper Wiring Blocks

Features
Unfiltered type, DC braking, and compound braking

Frequency
47 Hertz (HZ)

Siemens MICROMASTER 420 AC Inverter Drive (6SE6420-2UC22-2BA1), 3-Phase 240V output, 10.4 A rated current, Frame Size FSB, unfiltered, IP20 cubicle-mount motor controller Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Siemens MICROMASTER 420 AC Inverter Drive (6SE6420-2UC22-2BA1), 3-Phase 240V output, 10.4 A rated current, Frame Size FSB, unfiltered, IP20 cubicle-mount motor controller

Regulate low-voltage AC motor speeds reliably with the legacy Siemens MICROMASTER 420 AC Frequency Inverter Drive (6SE6420-2UC22-2BA1). Part of the trusted MICROMASTER 420 (MM420) series, this Frame Size B (FSB) compact inverter steps down energy footprints by delivering precise V/f speed control for 3.0 HP (2.2 kW) induction motors. The flexible input section handles single-phase or three-phase 200240V AC incoming grid power, cleanly converting it into an adjustable three-phase output up to a 10.4 Amp continuous rating. Engineered for heavy factory floors, it tolerates a sharp 150% high overload capability for up to 60 seconds within a 300-second cycle time, utilizing an active cooling fan to operate reliably in ambient panel temperatures up to 50 C.

The core mechanical footprint incorporates a zero-clearance side-by-side cubicle mounting design (202 x 149 x 172 mm) with an IP20-rated protection shield to save tight cabinet real estate. For automated system workflows, it hosts 3 digital inputs, 1 analog input (010V), and 1 programmable relay output, along with built-in RS-485 interfaces optimized for distributed Modbus serial data pipelines.

Important Lifecycle & Module Note: This item has officially entered Product Cancellation / Spare Part status. To future-proof your new facilities, Siemens recommends migrating to the SINAMICS V20 or G120 micro-drive series. Additionally, the baseline unit arrives without an operator keypad panel (BOP/AOP); variable adjustments require plugging in a basic keypad or an external computer interface connection kit.
