Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA.
Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA.
images Send Inquiry
Request To Call Back
  • Home
  • Products
  • Siemens Plc
  • Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA.

Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA.

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA. Specification

  • Output Voltage
  • 5 V to 30 V DC / 5 V to 250 V AC (2 A Relay output) Volt (V)
  • Humidity
  • Max. 95% operational humidity (non-condensing)
  • Protection Level
  • IP20 Protection Rating
  • Input Current
  • Max 300 mA at 120 V AC / 150 mA at 240 V AC
  • Efficiency
  • Fast 0.08 s execution speed per binary operation
  • Rated Voltage
  • 120 / 230 V AC operational supply Volt (V)
  • Frequency
  • 47 Hz to 63 Hz line frequency range Hertz (HZ)
  • Operating Temperature
  • -20 C to +60 C Celsius (oC)
  • Mounting Type
  • 3.5 cm Top-Hat DIN Rail or wall installation
  • Phase
  • Single-Phase Line Network
  • Usage
  • Complex industrial automation, machinery control systems
  • Main Material
  • Processing Type
  • Standard
  • Size
  • 130 mm compact integrated I/O footprint
  • Condition
  • New
  • Height
  • 10.0 Centimeter (cm)
  • Function
  • 14 DI / 10 DQ (Relay) / 2 AI / 2 AQ integrated sync
  • Product Type
  • SIMATIC S7-1200 Compact CPU
  • Application
  • Factory panels, pump stations, HVAC network hubs
  • Weight
  • 525 Grams (g)
  • Dimension (L*W*H)
  • 7.5 x 13.0 x 10.0 cm Centimeter (cm)
  • Color
  • Industrial Gray
  • Power Mode
  • Other
  • Voltage
  • 85 V to 264 V AC Volt (v)
  • Length
  • 7.5 Centimeter (cm)
  • Width
  • 13.0 Centimeter (cm)
  • Power Consumption
  • Typical 12 W power loss / Max 24 W with loads Watt (W)
  • Accessories
  • Signal boards, Signal modules, SIMATIC Memory Card
  • Warranty
  • Standard manufacturer/distributor warranty


Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA. Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA.

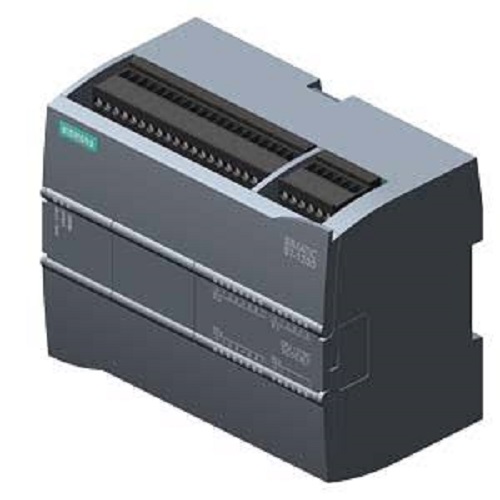

SIMATIC S7-1200, CPU 1215C, compact CPU, AC/DC/relay, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A, 2 AI 0-10 V DC, 2 AO 0-20 mA DC, power supply: AC 85-264 V AC at 47-63 Hz, program/data memory 200 KB


Power Supply, 200 KB Work Memory, 14 Digital Inputs 24V DC / 10 Relay Outputs 2A, 2 Analog Inputs 0-10V DC / 2 Analog Outputs 0-20mA.
