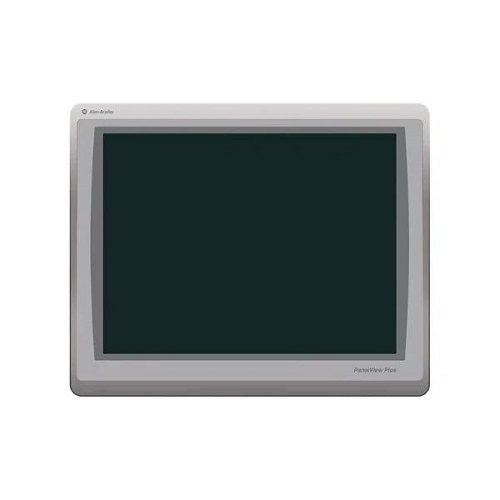

PanelView Plus 7 Standard | 5.7" Touchscreen HMI, TFT Color, DLR Ethernet, 24 V DC

PanelView Plus 7 Standard | 5.7" Touchscreen HMI, TFT Color, DLR Ethernet, 24 V DC About

The Allen-Bradley 2711P-T6C22D8S-B is a PanelView Plus 7 Standard industrial operator terminal designed for machine operation, monitoring, and process visualization. It features a 5.7-inch TFT color touchscreen with 320 240 pixel resolution, providing compact and clear visualization for basic industrial applications. The terminal uses a resistive touchscreen for direct operator interaction and supports Device Level Ring (DLR) Ethernet, making it suitable for EtherNet/IP industrial networks. It operates from a 24 V DC supply and uses Windows CE 6 as its operating system. The terminal provides dual Ethernet connectivity with DLR capability, along with USB connectivity for peripherals and data transfer. The rugged enclosure is rated NEMA/UL Type 12, 13 and 4X for indoor use, with IP54/IP66 classification, and operates from 0 to +55 C. The -B suffix indicates the brandless version, without the standard Allen-Bradley front branding, allowing OEM customization. With approximate dimensions of 17.8 15.2 5.8 cm and a weight of approximately 0.74 kg, the 2711P-T6C22D8S-B is suitable for compact machinery, packaging equipment, conveyors, material handling, and general industrial automation applications. Rockwell Automation currently lists this exact model as an active PanelView Plus 7 Standard terminal.
