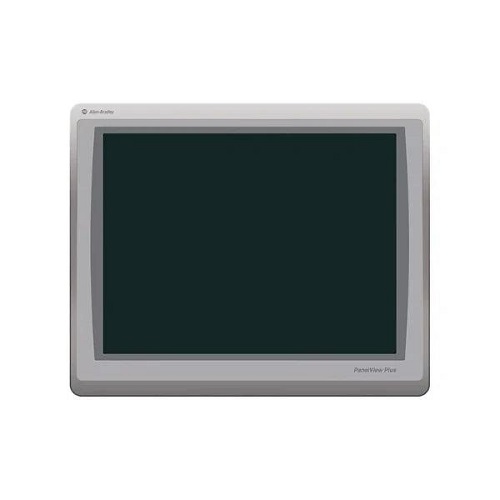

PanelView Plus 7 Performance | 12.1" Touchscreen HMI, WXGA, Dual Ethernet/DLR, 24 V DC

The Allen-Bradley 2711P-T12C22D9P-B is a PanelView Plus 7 Performance industrial operator terminal designed for machine operation, process monitoring, and advanced HMI visualization. It features a 12.1-inch color TFT touchscreen display with 1280 800 WXGA resolution, 18-bit color graphics, and approximately 300 cd/m brightness. The terminal uses an analog resistive touchscreen rated for approximately 1 million actuations, providing reliable operator interaction in industrial environments. The catalog number specifies touch operation, 12.1-inch display, color graphics, Ethernet with Device Level Ring (DLR), 24 V DC power, and Performance-class functionality, while the -B suffix identifies the brandless version without Allen-Bradley front branding.

The unit operates from a 24 V DC nominal supply (1830 V DC) and has maximum power consumption of approximately 50 W. It provides Ethernet connectivity supporting DLR, linear, and star network topologies, making it suitable for EtherNet/IP-based industrial automation systems. The Performance terminal includes 512 MB RAM and 512 MB storage, approximately 80 MB nonvolatile application storage, an SD card slot, and a battery-backed real-time clock. The rugged panel-mounted construction is suitable for industrial environments, with an operating temperature range of 0 to +55 C. Approximate dimensions are 240 340 69.6 mm (H W D) with a weight of approximately 2.54 kg. The terminal supports FactoryTalk View Machine Edition and is suitable for production machinery, packaging systems, material handling, process equipment, and other industrial automation applications requiring a reliable 12-inch touchscreen HMI.
