PanelView 5510 | 19" Touchscreen HMI, SXGA, Dual Ethernet/DLR, 24 V DC

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

PanelView 5510 | 19" Touchscreen HMI, SXGA, Dual Ethernet/DLR, 24 V DC Specification

  • Efficiency
  • Dual-core CPU / Studio 5000 View Designer
  • Rated Voltage
  • 24 V DC Volt (V)
  • Phase
  • Single (DC configuration link)
  • Operating Temperature
  • 0 C to +55 C (Standard operating window) Celsius (oC)
  • Protection Level
  • IP66 / NEMA Type 4X front enclosure seal
  • Mounting Type
  • Recessed Panel Mount / Control Cabinet Door
  • Input Current
  • 7.0 A Maximum temporary inrush threshold
  • Humidity
  • 95 % maximum relative non-condensing
  • Main Material
  • Usage
  • Close-to-Machine Operator Control / HMI
  • Condition
  • New
  • Size
  • 19.0-inch Display Screen
  • Function
  • Machine Interfacing & Parameter Management
  • Height
  • 41.1 Centimeter (cm)
  • Product Type
  • PanelView 5510 Graphic Terminal
  • Application
  • Logix-integrated system monitoring & command
  • Dimension (L*W*H)
  • 48.5 cm x 41.1 cm x 6.95 cm Centimeter (cm)
  • Weight
  • 6.80 Kilograms (kg)
  • Color
  • Industrial Dark Gray / Slate Frame with Aluminum Bezel
  • Width
  • 48.5 Centimeter (cm)
  • Length
  • 48.26 Centimeter (cm)
  • Voltage
  • 24 V DC nominal (18 to 30 V DC range) Volt (v)
  • Power Consumption
  • 43 W Typical runtime operating draw Watt (W)
  • Battery Life
  • 4 Years
  • Accessories
  • Mounting levers and rear sealing gasket
  • Warranty
  • Supplier Dependent (Standard 1 Year)


PanelView 5510 | 19" Touchscreen HMI, SXGA, Dual Ethernet/DLR, 24 V DC Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


PanelView 5510 | 19" Touchscreen HMI, SXGA, Dual Ethernet/DLR, 24 V DC About

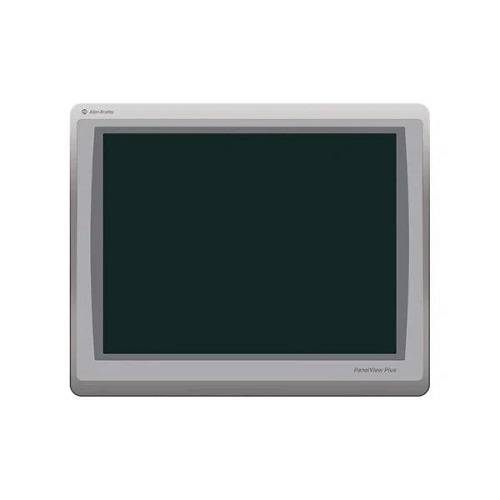

The Allen-Bradley 2715P-T19CD is a PanelView 5510 Graphic Terminal designed for industrial machine operation, monitoring, and visualization applications. It features a 19-inch color TFT display with 1280 1024 SXGA resolution, 5:4 aspect ratio, 24-bit color graphics, and approximately 300 nits brightness. The terminal uses an analog resistive touchscreen with a dedicated menu-navigation button, providing reliable operator interaction in industrial environments. It includes two 10/100Base-T Ethernet ports supporting EtherNet/IP, Device Level Ring (DLR), linear, and star network topologies.

The terminal operates from a 24 V DC supply (1830 V DC), with typical power consumption of approximately 30 W and maximum consumption of 43 W. It provides 1 GB RAM, 1 GB nonvolatile project storage, one SD card slot, and two USB 2.0 host ports plus one USB 2.0 device port. The panel supports Studio 5000 View Designer for application development and is designed for EtherNet/IP-based automation systems.
