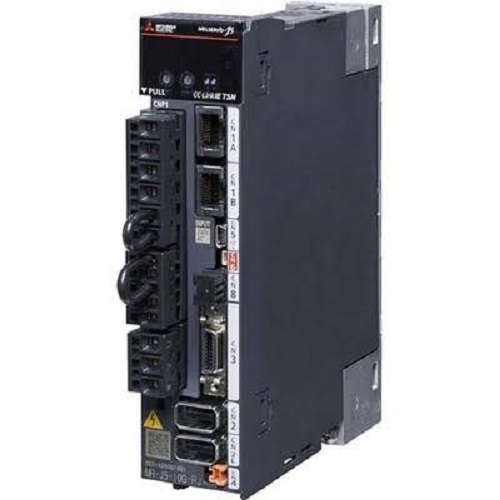

Mitsubishi Electric MR-J5-100G-RJN1 Digital, EtherCAT command interface, dual encoder ports, embedded dynamic brake and regenerative resistor, IP20

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mitsubishi Electric MR-J5-100G-RJN1 Digital, EtherCAT command interface, dual encoder ports, embedded dynamic brake and regenerative resistor, IP20 Specification

Current Range
6.0 Ampere (A)

Working Temperature
0 C to +60 C Celsius (oC)

Output Current
6.0 A Ampere (amp)

Rated Current
6.0 Ampere (amp)

Application
High-speed motion control, industrial robotics, automation

Noise Level
Fan-cooled optimized cabinet deployment sound db

Operating Temperature
0 C to +60 C Celsius (oC)

Features
Integrated EtherCAT network, dynamic braking, STO safety

Power Factor
Built-in power factor correction capability

Connector Type
Copper stranded wiring recommendations

Power Supply
200 V AC - 240 V AC

Cooling Method
Forced air cooling / built-in cooling fan

Rated Power
1 kW (1000 W)

Product Type
AC Motion Servo Drive / Amplifier

Power Rating
1000 W (1.0 kW) continuous

Output Power
1.0 kilovolt (kV)

Output Frequency
0 Hz to 590 Hz Hertz (HZ)

Input Voltage
200 V AC to 240 V AC Volt (V)

Voltage Protection
Built-in overvoltage, undervoltage, and overcurrent protection

Efficiency
Aligned with IE2 energy efficiency standards

Warranty
Standard 1-year manufacturer coverage

Line Regulation
Precise voltage control within factory defaults

Storage Temperature
-20 C to +65 C Celsius (oC)

Weight
1.4 Kilograms (kg)

Rated Voltage
200 V AC to 240 V AC input Volt (V)

Usage & Applications
Multi-axis positioning, packaging, CNC, semiconductor lines

Cable Type
Shielded twisted-pair (Ethernet / Encoder)

Phase
1-Phase or 3-Phase input

Display Type
Multi-axis positioning, packaging, CNC, semiconductor lines

Material
Highly integrated smart IGBT power module array

Conductor
Pure copper (Cu) electrical wiring compatible

Frequency
50 Hertz (HZ)

Mitsubishi Electric MR-J5-100G-RJN1 Digital, EtherCAT command interface, dual encoder ports, embedded dynamic brake and regenerative resistor, IP20 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Mitsubishi Electric MR-J5-100G-RJN1 Digital, EtherCAT command interface, dual encoder ports, embedded dynamic brake and regenerative resistor, IP20

Unleash next-generation high-speed motion control with the ultra-precise Mitsubishi Electric MR-J5-100G-RJN1 Digital AC Servo Amplifier. Positioned as a flagship, high-performance motion module within the premier MELSERVO-J5 Series, this 1 kW axis drive utilizes a lightning-fast EtherCAT communication command interface to orchestrate demanding, multi-axis robotic loops and packaging mechanics with zero transmission lag. Running on a versatile 200V-class electrical architecture, it handles single-phase or three-phase 200240V AC incoming grid power, as well as common DC bus power inputs.

The defining technical edge of the "-RJN1" variant is its special multiprotocol hardware footprint out of the box:

Network & Feedback Hardware: Incorporates native EtherCAT network routing, combined with dual encoder port channels. This makes it perfectly compatible with secondary load-side scale encoders for advanced fully closed-loop tracking, or functional master-slave synchronization.
Advanced Automation Auto-Tuning: Features Mitsubishi's proprietary real-time auto-tuning filter engine, which automatically structures machine resonance suppression and controls micro-overshoots in under 0.3 seconds.
Predictive Diagnostics & Safety: Integrates proactive machine diagnosis algorithms to track mechanical friction on ball screws, belts, and gears, minimizing plant downtime. It also houses an onboard functional safety controller natively executing Safe Torque Off (STO) parameters to isolate system hazards safely.
