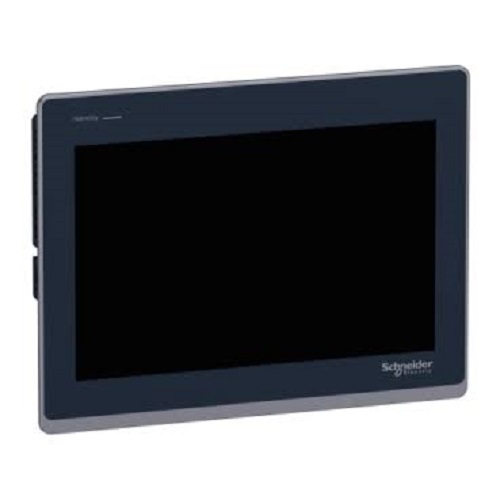

Harmony STW6 | 10" Widescreen Basic Web Terminal, HTML5 Browser, 24V DC Power

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Harmony STW6 | 10" Widescreen Basic Web Terminal, HTML5 Browser, 24V DC Power Specification

  • Input Current
  • 30 A Maximum temporary inrush threshold
  • Phase
  • Single (DC configuration distribution link)
  • Rated Voltage
  • 24 V DC Volt (V)
  • Operating Temperature
  • 0 C to +50 C Celsius (oC)
  • Efficiency
  • 800MHz ARM Cortex-A8 CPU / 512MB RAM
  • Protection Level
  • IP65F Front Panel / IP20 Rear core casing
  • Mounting Type
  • Recessed Panel Mount / Control Cabinet Door
  • Humidity
  • 90 % Maximum relative non-condensing
  • Usage
  • The Schneider Electric HMISTW6500 is a highly efficient 10.1-inch widescreen industrial basic web terminal precision-engineered for cost-effective operator control, remote visualization, and simplified device maintenance. Part of the specialized Harmony STW6 sub-range within the broader ST6 product family, this unit operates as a ready-to-use, agnostic HMI terminal featuring a pre-installed HTML5 browser. This software layout allows operators to natively visualize and interact with server-hosted machinery dashboards without requiring a dedicated HMI application configuration runtime. The premium TFT color LCD screen outputs a clear 1024 x 600 SVGA pixel resolution with up to 16 million colors, backed by a 50,000-hour white LED backlight with 16 software-adjustable brightness levels. Operators interface with systems via an elegant aluminum alloy front panel that features an integrated multi-color LED operating mode status indicator and a highly durable, analog-resistive single-touch screen.
  • Main Material
  • Condition
  • New
  • Size
  • 10.1-inch Widescreen
  • Function
  • HTML5 Web Browser Terminal Node
  • Height
  • 20.3 Centimeter (cm)
  • Application
  • Dynamic Web-Driven Plant Automation
  • Product Type
  • Harmony STW6 Basic Web Panel
  • Weight
  • 1.30 Kilograms (kg)
  • Dimension (L*W*H)
  • 27.3 cm x 20.3 cm x 4.7 cm Centimeter (cm)
  • Color
  • Slate Gray Frame / Silver Aluminum Face
  • Voltage
  • 24 V DC nominal (Permissible range 19.2 to 28.8 V) Volt (v)
  • Length
  • 25.65 Centimeter (cm)
  • Width
  • 27.3 Centimeter (cm)
  • Power Consumption
  • 12.6 W Maximum operating load drawing Watt (W)
  • Accessories
  • Quick-install panel clips and rear rubber seal
  • Warranty
  • Supplier Dependent (Standard 1 Year)


Harmony STW6 | 10" Widescreen Basic Web Terminal, HTML5 Browser, 24V DC Power Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


Harmony STW6 | 10" Widescreen Basic Web Terminal, HTML5 Browser, 24V DC Power About

The Schneider Electric HMISTW6500 is a highly efficient 10.1-inch widescreen industrial basic web terminal precision-engineered for cost-effective operator control, remote visualization, and simplified device maintenance. Part of the specialized Harmony STW6 sub-range within the broader ST6 product family, this unit operates as a ready-to-use, agnostic HMI terminal featuring a pre-installed HTML5 browser. This software layout allows operators to natively visualize and interact with server-hosted machinery dashboards without requiring a dedicated HMI application configuration runtime. The premium TFT color LCD screen outputs a clear 1024 x 600 SVGA pixel resolution with up to 16 million colors, backed by a 50,000-hour white LED backlight with 16 software-adjustable brightness levels. Operators interface with systems via an elegant aluminum alloy front panel that features an integrated multi-color LED operating mode status indicator and a highly durable, analog-resistive single-touch screen.
Harmony STW6 | 10
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

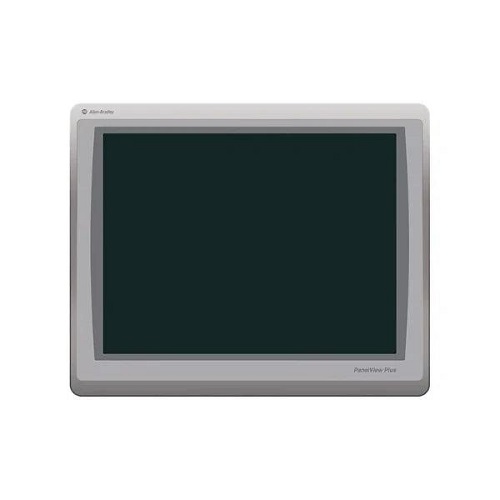

PanelView 5510 1200W | 12.1
