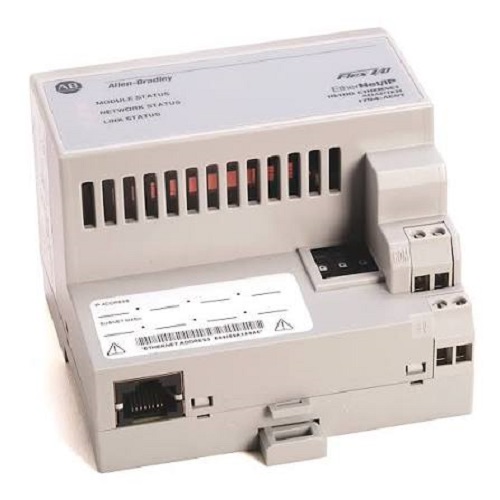

Allen-Bradley 1794-AENT FLEX I/O EtherNet/IP Adapter Module | Single-port 10/100 Mbps Ethernet interface, modular distributed assembly head, hooks up to 8 FLEX I/O expansion modules, 24V DC backplane engine, IP20 industrial remote chassis component

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Allen-Bradley 1794-AENT FLEX I/O EtherNet/IP Adapter Module | Single-port 10/100 Mbps Ethernet interface, modular distributed assembly head, hooks up to 8 FLEX I/O expansion modules, 24V DC backplane engine, IP20 industrial remote chassis component Specification

Humidity
5% to 95% relative humidity parameter metrics (Non-condensing boundaries)

Input Current
550 mA maximum continuous current at 24V DC input threshold

Rated Voltage
24 V DC Volt (V)

Mounting Type
Direct horizontal or vertical DIN Rail Profile or Panel installation

Phase
N/A (Direct Current high-speed fieldbus synchronization profile)

Efficiency
Extremely fast deterministic logic handling minimizing central CPU overhead

Operating Temperature
0 C to +55 C Celsius (oC)

Main Material

Usage
Industrial Automation

Condition
New

Size
Compact single-slot space footprint powering modular node blocks

Height
8.70 Centimeter (cm)

Function
FLEX I/O Interfacing Adapter (Single RJ45 copper network port connection framework)

Application
Connects standard PC COM ports, plant servers, or PACs to terminal slices

Product Type
EtherNet/IP Remote Communication Node Adapter

Dimension (L*W*H)
6.90 cm x 9.40 cm x 8.70 cm Centimeter (cm)

Weight
0.22 Kilograms (kg)

Color
Rockwell Industrial Gray / Black Frame

Width
9.40 Centimeter (cm)

Voltage
24 V DC Volt (v)

Length
6.90 Centimeter (cm)

Power Consumption
9.6 Watt (W)

Accessories
Integrated 24V DC terminal blocks with manual lock tabs

Warranty
Standard Allen-Bradley Factory Warranty

Allen-Bradley 1794-AENT FLEX I/O EtherNet/IP Adapter Module | Single-port 10/100 Mbps Ethernet interface, modular distributed assembly head, hooks up to 8 FLEX I/O expansion modules, 24V DC backplane engine, IP20 industrial remote chassis component Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Allen-Bradley 1794-AENT FLEX I/O EtherNet/IP Adapter Module | Single-port 10/100 Mbps Ethernet interface, modular distributed assembly head, hooks up to 8 FLEX I/O expansion modules, 24V DC backplane engine, IP20 industrial remote chassis component

Establish immediate, high-fidelity data pipelines across your distributed plant floors with the rugged Allen-Bradley 1794-AENT FLEX I/O Communication Adapter Module. Engineered by Rockwell Automation to serve as the remote head terminal interface for modular instrumentation layouts, this slice component maps up to 8 individual FLEX I/O digital, analog, or high-speed specialty cards directly to unified Logix architectures. Operating over a standard single-port RJ45 10/100 Mbps Ethernet connection, it translates Common Industrial Protocol (CIP) commands with absolute sub-millisecond precision.

The unit runs on a nominal 24V DC input stream, utilizing an onboard power management engine that outputs 5.1V DC at 640 mA maximum down the internal Flexbus lane to power nested expansions. Designed with space conservation in mind, its compact, open-style chassis snaps smoothly onto 35mm DIN rails or direct wall backplates without causing electrical signal derating.

Important Lifecycle Note: Rockwell Automation has announced the official End-of-Life lifecycle status for this classic single-port adapter. It will be discontinued on September 30, 2028. For all brand-new facility installations, network expansions, or future-proof retrofits, Rockwell strongly advises choosing the dual-port, DLR-capable 1794-AENTR replacement hardware module to optimize network availability and system survival.
