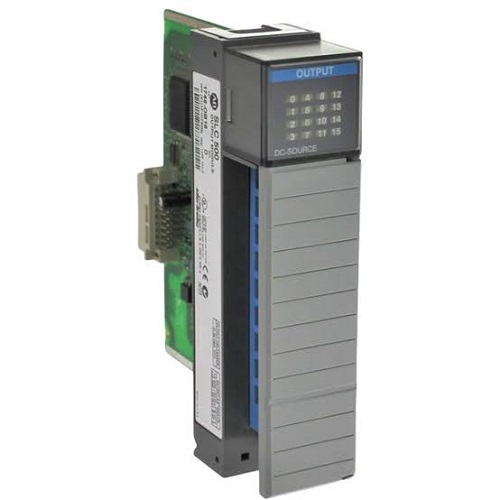

Allen-Bradley 1746-OB16E SLC 500 Digital Output Module | 16-channel sourcing transistor outputs (24V DC), electronically protected, SLC 500 chassis-based platform, optical isolation, legacy industrial control component

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Allen-Bradley 1746-OB16E SLC 500 Digital Output Module | 16-channel sourcing transistor outputs (24V DC), electronically protected, SLC 500 chassis-based platform, optical isolation, legacy industrial control component Specification

Efficiency
Electronic protection using a thermal cut-out rule to lower maintenance downtime

Phase
N/A (Direct Current high-speed fieldbus synchronization profile)

Protection Level
IP20

Mounting Type
Direct slot plug-in slide insertion on SLC 500 local or expansion chassis

Humidity
5% to 95% relative humidity matrix values (Non-condensing boundaries)

Rated Voltage
24 V DC Volt (V)

Operating Temperature
0 C to +60 C Celsius (oC)

Main Material

Usage
Industrial Automation

Size
Compact single chassis bay footprint handling solid-state point blocks

Condition
New

Function
1746-OB16E Module (16 outputs, electronically auto-protected channels)

Height
14.2 Centimeter (cm)

Application
Switching intermediate solenoid valves, pilot indicators, actuators, and solid-state loads

Product Type
SLC 500 Distributed Hardware System Sourcing DC Output Module

Weight
0.26 Kilograms (kg)

Dimension (L*W*H)
14.7 cm x 3.5 cm x 14.2 cm Centimeter (cm)

Color
Rockwell Industrial Gray Face / Black Trim

Length
14.7 Centimeter (cm)

Voltage
24 V DC Volt (v)

Width
3.5 Centimeter (cm)

Accessories
Removable 12-Position front terminal screw wiring connection block

Warranty
Standard Factory / Distributer-backed baseline warranty matrix

Allen-Bradley 1746-OB16E SLC 500 Digital Output Module | 16-channel sourcing transistor outputs (24V DC), electronically protected, SLC 500 chassis-based platform, optical isolation, legacy industrial control component Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Allen-Bradley 1746-OB16E SLC 500 Digital Output Module | 16-channel sourcing transistor outputs (24V DC), electronically protected, SLC 500 chassis-based platform, optical isolation, legacy industrial control component

Safeguard your legacy automated networks with the high-reliability Allen-Bradley 1746-OB16E SLC 500 Digital Output Module. Engineered to slot directly into any standard 1746 SLC 500 chassis rack, this 16-channel sourcing transistor card provides precise 24V DC control commands across a wide operating threshold from 10V DC up to 30V DC. It features integrated electronic protection that safeguards internal circuits against field-side short circuits and overcurrent anomalies, eliminating blown physical fuses and minimizing unscheduled plant downtime.

Equipped with robust optical isolation barriers, the card prevents field noise and transient voltage spikes from reaching the sensitive SLC backplane logic. The front-facing assembly includes a clear 16-point LED status matrix for fast localized troubleshooting, alongside a removable terminal block to accelerate field-swapping without rewiring the cabinet. Fully configured inside RSLogix 500 software, this heavy-duty sourcing card is the definitive component for driving 24V DC pilot lights, control relays, and small DC solenoid valves on manufacturing floors.
