ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel
ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel
images Send Inquiry
Request To Call Back

ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel

Price 30000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel Specification

  • Operating Temperature
  • 0 C to +50 C (Standard horizontal setup window) Celsius (oC)
  • Phase
  • Single (DC configuration loop architecture)
  • Mounting Type
  • Recessed Panel Flush Mounting configuration
  • Humidity
  • 85 % Maximum relative non-condensing state
  • Input Current
  • 0.40 A Continuous total structural runtime current
  • Protection Level
  • IP66 Front Panel washdown / IP20 Rear core shell
  • Efficiency
  • ARM Cortex-A8 600MHz CPU / 128MB Flash storage
  • Rated Voltage
  • 24 V DC Volt (V)
  • Main Material
  • Usage
  • Close-to-Machine Operator Control / Standard HMI
  • Size
  • 7.0-inch Widescreen
  • Condition
  • New
  • Height
  • 14.7 Centimeter (cm)
  • Function
  • Plant Automation Interfacing & Command Hub
  • Application
  • Plant Machinery Monitoring & Localized Diagnostics
  • Product Type
  • CP600 Series Industrial Control Panel
  • Weight
  • 1.00 Kilograms (kg)
  • Dimension (L*W*H)
  • 18.7 cm x 14.7 cm x 5.0 cm Centimeter (cm)
  • Color
  • Industrial Dark Gray Frame / Textured Bezel
  • Voltage
  • 24 V DC nominal (Permissible range 18 to 32 V DC) Volt (v)
  • Width
  • 18.7 Centimeter (cm)
  • Length
  • 17.78 Centimeter (cm)
  • Power Consumption
  • ~10 W Maximum operational draw spectrum Watt (W)
  • Battery Life
  • 3 Years
  • Accessories
  • Quick-install rear cabinet clamps & perimeter seal
  • Warranty
  • Supplier Dependent (Standard 1 Year)


ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel About

The ABB CP635 (part number 1SAP535100R0001) is a high-performance, industrial-grade human-machine interface (HMI) panel from the core ABB CP600 series. Engineered for comprehensive machine visualization and process control, it features a vibrant 7-inch TFT graphical touchscreen display. The panel outputs 64,000 vibrant colors at a sharp 800 x 480 pixel WVGA resolution, delivering excellent visual clarity for machinery diagnostics, process flows, and active alarm tracking.
Operating on a standard 24V DC power supply, the terminal features a native PB610 runtime license for rapid project configuration and development. For streamlined factory networking, the hardware integrates dual 10/100 Mbit Industrial Ethernet ports featuring an integrated bridge switch to enable simple daisy-chain configurations. Additional physical connectivity includes software-configurable serial interfaces, an SD card slot, and dual USB 2.0 host ports. Its heavy-duty aluminum housing features an IP66 front ingress protection rating to resist plant floor dust and moisture.
ABB CP635 (1SAP535100R0001): 7-Inch Industrial Touch HMI Panel
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Hmi Touch Panel Category

12/24RCE PLC with KTP400 Basic HMI, 24 V DC

12/24RCE PLC with KTP400 Basic HMI, 24 V DC

Price 30000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Mounting Type : DIN Rail (PLC/PSU) & Panel Cutout (HMI)

Function : Widescreen Touch + Functional Keys

Input Current : 1.3 A (Rated output capacity of power module)

Voltage : 24 V DC (Operating range 19.2 28.8 V) Volt (v)

Get a Price/Quote

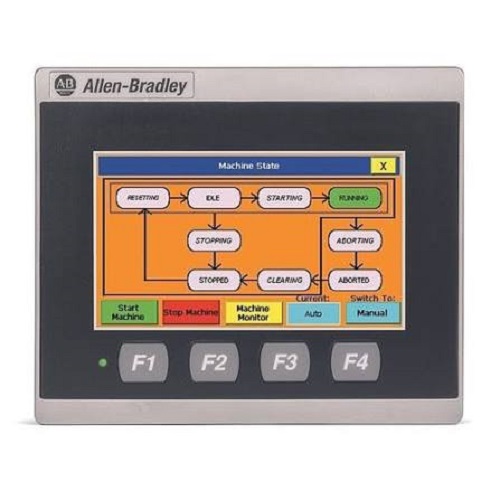

PanelView Plus 7 Standard 400W | 4.3
