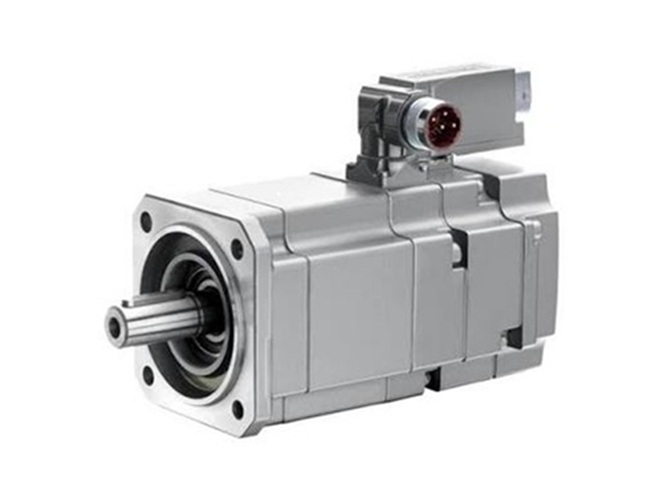

Siemens SIMOTICS S-1FK2 CT Servo Motor

About Siemens SIMOTICS S-1FK2 CT Servo Motor

The Siemens 1FK2210-4AB10-1MB0 is a dynamic AC synchronous servo motor engineered for precise position and continuous velocity control in heavy-duty industrial automation applications, including CNC machining tools, robotics, and automated handling systems.

Key Specifications & Features

• Output & Torque: Delivers a static torque ($M_0$) of 40 Nm, with a rated power of 5.4 kW at 1,500 rpm ($380\text{}480\text{ V}$) or 3.05 kW at 750 rpm ($200\text{}240\text{ V}$).

• Multiturn Absolute Encoder: Equipped with a high-resolution 22-bit + 12-bit multiturn absolute encoder (AM22DQC) featuring a DRIVE-CLiQ interface (M17) for tracking absolute position over multiple shaft rotations.

• Mechanical Build: Frame size 100 with natural cooling, a shaft with a feather key ($38 \times 80\text{ mm}$), and an integrated holding brake to secure static loads.

• Protection & Interconnects: IP64-rated enclosure to shield against dust and splashing water, paired with a size M23 rotatable power connector.

Designed for integration with Siemens SINAMICS drives, it provides low rotor inertia, high dynamic response, and operational reliability.
