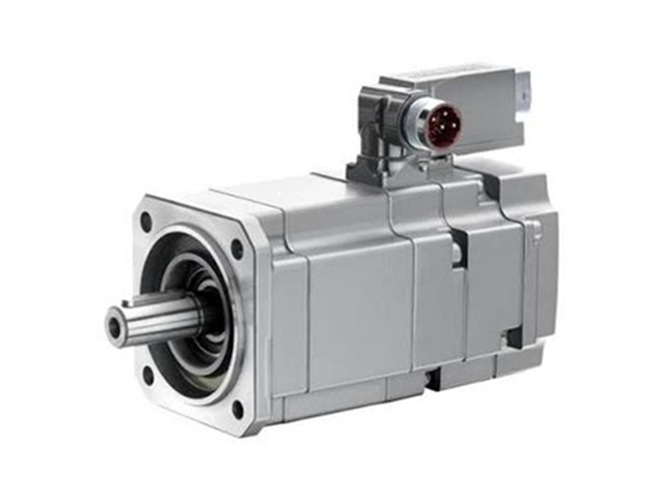

Siemens SIMOTICS S-1FK2 CT Servo Motor

About Siemens SIMOTICS S-1FK2 CT Servo Motor

The Siemens 1FK2210-4AB11-0MB0 is a high-performance AC synchronous servo motor designed for precise, dynamic motion control in demanding automation applications, such as CNC machinery, robotics, and high-speed packaging equipment.

Key Specifications & Features

• Torque & Output: Delivers a static torque ($M_0$) of 40 Nm with a rated power output of 5.4 kW at 1,500 rpm (380480 V) or 3.05 kW at 750 rpm (200240 V).

• High-Resolution Multiturn Feedback: Features an integrated 22-bit + 12-bit multiturn absolute encoder (AM22DQC) with a DRIVE-CLiQ digital interface (M17) for absolute position tracking over multiple shaft revolutions.

• Mechanical Design: Standardized frame size 100 with natural cooling, a smooth cylindrical shaft ($38 \times 80\text{ mm}$), and an integrated holding brake to keep loads securely positioned when powered off.

• Protection & Connections: Rated IP65 for dust and splash resistance, equipped with a rotatable M23 power connector and M17 signal plug.

Optimized for seamless drive-based integration (such as with SINAMICS S210/S120 drives), this motor ensures rapid dynamic response and exceptional operational efficiency.
